Key Specifications / Features
As a trusted ASTM B148 C95800 gate valve supplier from China, we provide high-quality valves engineered for demanding applications. Our 12-inch (DN300) gate valve, made from durable aluminum bronze, is designed for exceptional corrosion resistance and longevity. Rated for Class 1500 LB pressure, it features an OS&Y configuration, a flexible wedge for dependable sealing, a bolted bonnet for added strength, and RTJ flanged ends for secure connections. Built to meet stringent industry standards, our valves deliver reliable performance and durability in critical industrial environments.
Bolted Bonnet Gate Valve, ASTM B148 C95800, 12 Inch/DN300, 1500 LB, RTJ Flanged, Handwheel/Gear Operation.
Valve Description
A gate valve is a multi-turn isolation valve for fully opening or closing pipelines. It operates with a threaded stem to shift a gate between metal seats, which may have hard-facing for durability or soft seats for specific applications like water. Compact and effective,
gate valves prevent water hammer and are suited for low pressure drop and free bore. They are widely used with fluids including water, oil, steam, gas, and slurry.
| 1821134 Gate Valve |
| Design Standard: |
API 600 |
| Body Material: |
ASTM B148 C95800, ASTM A352 LCB, ASTM A351 CF8, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 4A. |
| Nominal Size: |
12 Inch, DN300 |
| Nominal Class: |
Class 1500 LB, PN250 |
| Bore Type: |
Standard Bore(API 600) |
| Trim Material: |
ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55. |
| End Connection: |
RTJ Flanged |
| Operation: |
Handwheel/Gear |
| Face to Face: |
ASME B16.10 |
| Test and Inspection: |
API 598 |
| Key Features: |
OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design. |
| Structure: |
Bolted Bonnet/Pressure Seal Bonnet |
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze.
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld).
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal.
Working Temperature: -29°C - +400°C

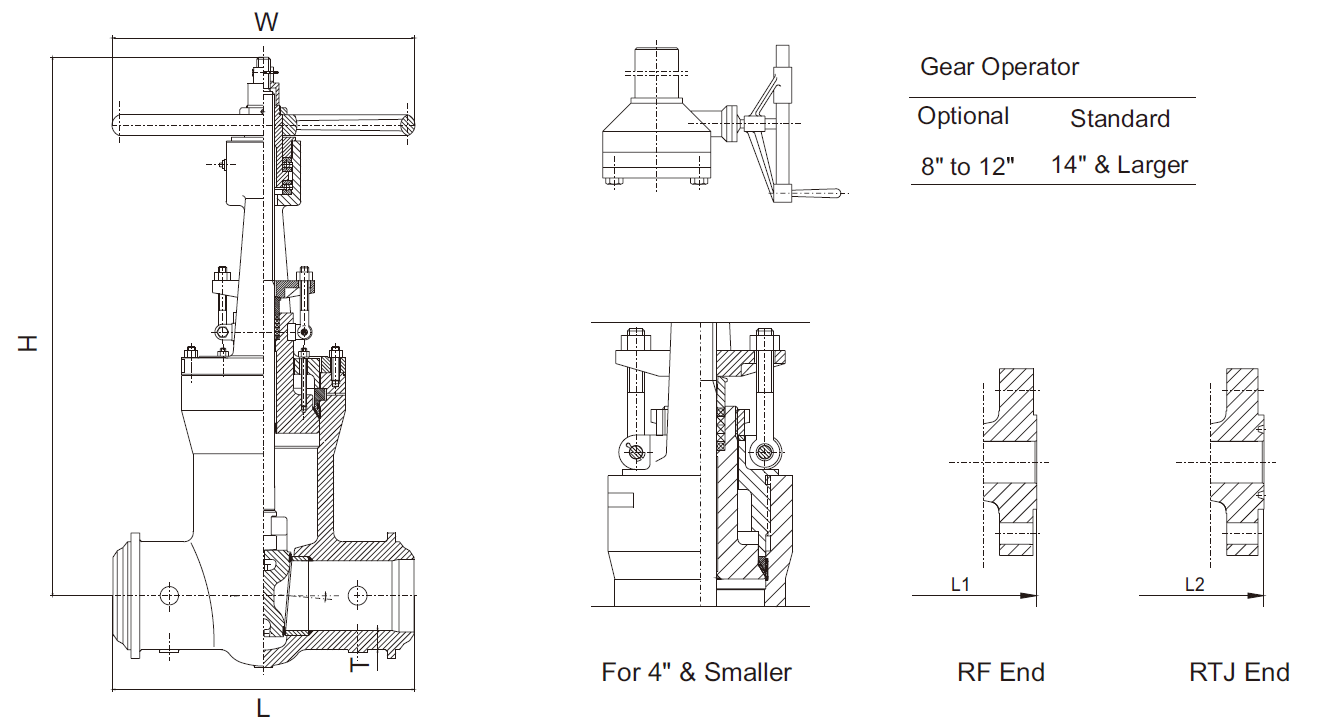

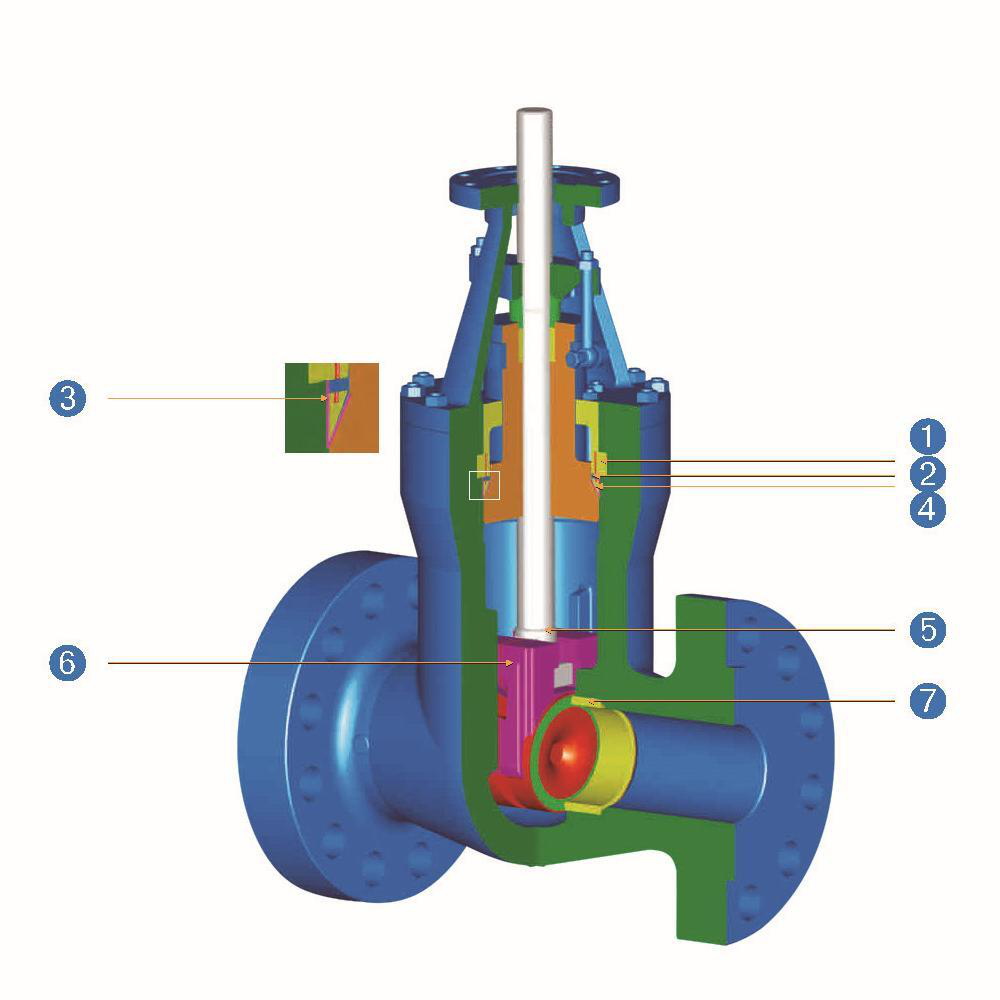

Pressure Seal Bonnet Gate Valve
