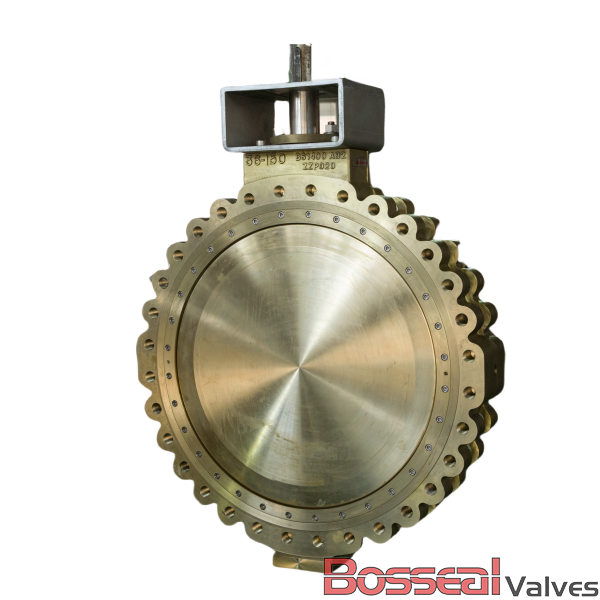

ASTM B148 C95800 Flanged Butterfly Valve, 18 IN, CL 150 LB

Key Specifications / Features

Model no. : 1862127

We manufacture double-flanged butterfly valves made from aluminum bronze ASTM B148 C95800. These high-performance valves are designed to meet EN 593 and API 609 Category B standards, ensuring reliability and durability in demanding applications. With an 18-inch size and 150 LB pressure rating, the double eccentric design offers excellent sealing and operational efficiency. Equipped with a robust 17-4PH stem, our valves are ideal for various industrial environments, delivering precision control and long-lasting performance. As a leading butterfly valve manufacturer in China, we provide top-quality valve solutions.

Detail Information

Aluminum Bronze Butterfly Valve, EN 593, Double Eccentric, 18 Inch/DN450, 150 LB, Double Flanged.

Valve Description

1862127 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 18 Inch, DN450
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM B148 C95800, ASTM A351 CF8M, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 4A, ASTM A890 5A, Titanium.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTFE+Metal (Fire Safe)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
