Key Specifications / Features
As a leading supplier of API 6D dual check valves from China, we offer high-performance valves made from ASTM B148 C95800 alloy. Our 10-inch, Class 300 LB valves adhere to API 594 standards and are available in wafer and flanged end configurations. The valves feature a compact design and are spring-loaded, ensuring reliable operation and efficient flow control. The use of ASTM B148 C95800 alloy provides superior durability and resistance to corrosion, making these valves suitable for demanding industrial applications. With their advanced design and robust construction, our dual check valves deliver exceptional performance and reliability, offering an optimal solution for preventing backflow and maintaining system integrity.
10 Inch

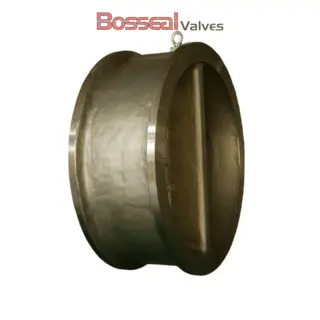

Dual Plate Check Valve, API 6D, ASTM B148 C95800, Class 300 LB, Wafer, Flanged Ends, Compact Design.
Valve Description
| 1842045 Dual Plate Check Valve |
| Design Standard: |
API 6D, API 594 |
| Structure: |
Spring Loaded, Dual Plate |
| Key Features: |
Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design. |
| Nominal Size: |
10 Inch/DN250 |
| Nominal Class: |
Class 300 LB |
| Body Material: |
ASTM B148 C95800, ASTM A352 LCB, Titanium Alloy, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A. |
| Bore Type: |
/ |
| End Connection: |
Wafer, Lug, Double Flanged |
| Operation: |
/ |
| Trim Material: |
ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy. |
| Face to Face: |
API 594 |
| Test and Inspection: |
API 598 |
Product Line
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
Seat Type: Soft Seat, Metal Seat
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
