Aluminum Bronze

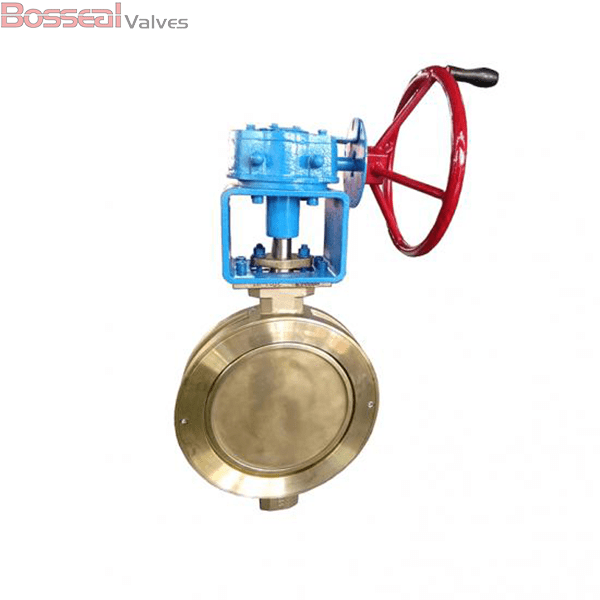

Butterfly Valve, API 609 Category B, 8 Inch/DN200, 300 LB, Gear Operation.
Valve Description
1862059 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 8 Inch, DN200
Nominal Class: Class 300 LB, PN50
Body Material: ASTM B148 C95800, ASTM A890 4A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 5A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Wafer
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Double Eccentric Butterfly Valve Introduction
Compared to other valve types, it’s obviously cost and space saving and have bigger size range, the operation is faster and there is less restriction and wear between disc and seat sealing surface. It will ensure longer cycling life and reduce total cost of ownership.
With 2 offsets the valve is with longer working life and lower torque and is suitable for frequent operation service, Bosseal high performance butterfly valve have passed a million cycling test.
