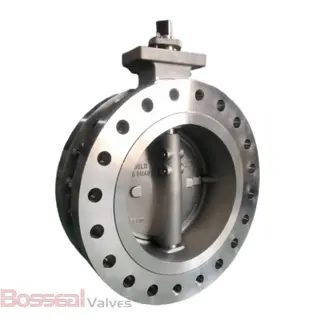

ASTM B148 C95800 Butterfly Valve, 48IN, 150LB, Monel K500 Stem

Key Specifications / Features

Model no. : 1862389

We specialize in manufacturing 48-inch double-offset butterfly valves with RPTFE seating for optimal performance. Designed to meet API 609 Category B and EN 593 standards, our valves are constructed from ASTM B148 C95800 material and feature a Monel K500 stem. The soft-seated design ensures tight sealing, making these valves ideal for isolation and regulating applications, especially in systems requiring frequent opening and closing. With a Class 150 LB rating, our butterfly valves offer exceptional reliability and efficiency in demanding pipeline environments. Trust us for high-quality solutions tailored to your needs.

Detail Information

API 609 Category B Butterfly Valve, 48 Inch/DN1200, 150 LB, Soft Seat, Double Flanged End.

Valve Description

1862389 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 48 Inch, DN1200
Nominal Class: Class 150 LB, PN16
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM B148 C95800, ASTM A890 4A, Titanium, ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8M, ASTM A351 CF8.
Seat: RPTFE, PPL
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
End Connection: Double Flanged
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Structure: Double Offset, Double Eccentric

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
