Double Eccentric

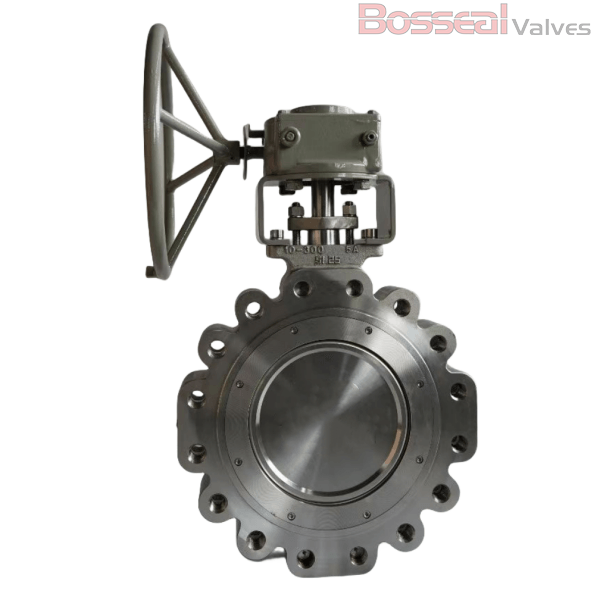

Butterfly Valve, 26 Inch, 150 LB, ASTM B148 C95800 Body, RPTFE Seated.
Valve Description
1862382 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 4A, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 5A, Titanium.
Nominal Size: 26 Inch, DN650
Structure: Double Offset, Double Eccentric
Nominal Class: 150 LBS
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium.
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
| Body Material: |
Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium Alloy |
| Normal Diameter: |
1/2 - 48 Inch (DN15 - DN1200) |
| Pressure Range: |
Class 150 LB - 300 LB |
| Operation: |
Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
| Working Temperature: |
-26°C - +120°C (180°C for PPL seat) |
| End Connection: |
Wafer, Lug, Flanged(FF, RF, RTJ) |
| Top Mounting: |
ISO 5211 Top Mounting Available |
Introduction to Double Eccentric Butterfly Valve
Compared to other valve types, the double eccentric butterfly valve offers significant cost and space savings, with a wider size range. Its faster operation and reduced wear between the disc and seat sealing surface ensure a longer cycling life and lower total cost of ownership. The two offsets provide extended durability, lower torque, and make the valve ideal for frequent operation. Bosseal high-performance butterfly valves have successfully passed a million-cycle test, guaranteeing reliability and long-term performance in demanding applications.
