Key Specifications / Features
Model no. : BV-2187301002

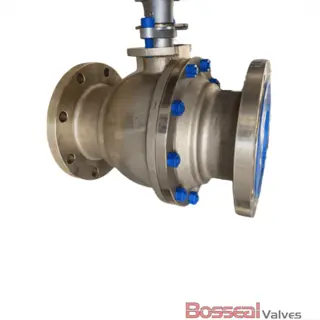

As a trusted BS 5351 ball valve supplier in China, we provide high-performance valves with an ASTM B148 C95800 aluminum bronze body, designed for durability and corrosion resistance. This 2-1/2 inch valve features a Class 150 LB pressure rating, RF flanged ends, and a bolted bonnet for secure sealing. Equipped with lever operation and an RPTFE seat, it ensures smooth and reliable performance across various industrial applications. Count on our precision-engineered ball valves for exceptional strength, reliability, and ease of operation in demanding environments.
Valve Description:
187301002 Aluminum Bronze Ball Valve
Design Standard: BS 5351, API 6D, ASME B16.34
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 150 LB, PN16
Operation: Lever
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Face to Face: ASME B16.10
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminum Bronze for Sea Water Service
Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: Raised Face (RF) Flange, Flat Face (FF) Flange
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
