Key Specifications / Features
Our company specializes in manufacturing ASTM B148 C95800 ball valves, designed to meet the highest industry standards. This particular valve is 8 inches in size, class 150 LB, and has a pressure rating of PN20. It features trunnion mounting and is made of durable aluminum bronze material. Compliant with API 6D specifications, it has RF ends and comes in two pieces. The valve is equipped with gear operation for easy control and manipulation. Trust our reliable and high-quality ball valves for your industrial needs.
Detail Information

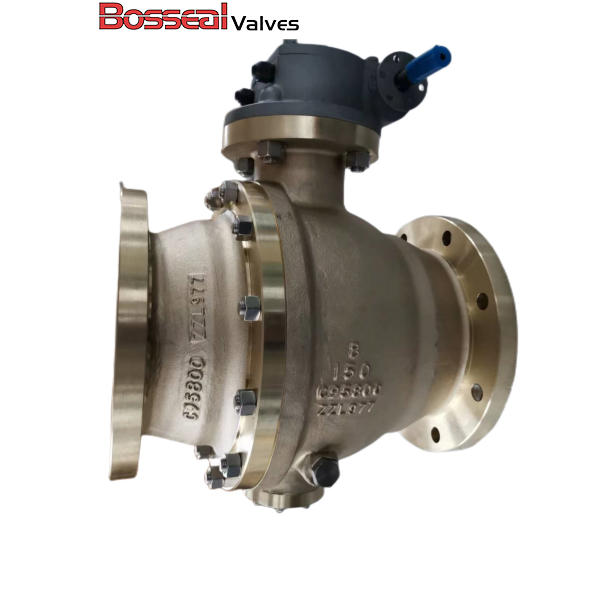

ASTM B148 C95800 Aluminum bronze Trunnion Mounted Ball Valve, API 6D, 8 inch, 150 LB, RF, Gear Operation
Valve Description:
1811034 Trunnion Mounted Ball Valve 10BS1RC958
Design Standard: API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, DBB Seats
Nominal size: 8 Inch
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B150 C63200, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DBB, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, for seawater service
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum bronze
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
