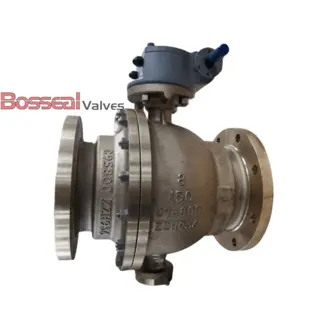

ASTM B148 C95800 Ball Valve, BS 5351, 2PC, 12 Inch, 150 LB

Name: ASTM B148 C95800 Ball Valve, BS 5351, 2PC, 12 Inch, 150 LB
SKU: bv-187301008
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : BV-187301008

As a leading BS 5351 ball valve fabricator in China, we offer high-quality valves made from aluminum bronze ASTM B148 C95800. This 12-inch valve (DN300) is designed for Class 150 LB pressure rating and PN20, ensuring reliable performance in demanding applications. Featuring C63200 trim and an RPTFE seat, it provides excellent sealing and durability. The RF flanged ends ensure easy installation and secure connections. Built for long-lasting corrosion resistance and strength, our valves are ideal for industrial environments, delivering superior performance and reliability. Trust us for precision-crafted valve solutions.

Request a quote

Tags:

ASTM B148 C95800 Ball Valve

BS 5351 Ball Valve

12 Inch Ball Valve

Detail Information

Valve Description:
187301008 Aluminum Bronze Ball Valve
Design Standard: API 6D, BS 5351, ASME B16.34
Structure: 2pcs Body, Side Entry, Bolted Bonnet, Soft Seat
Nominal Size: 12 Inch, DN300
Nominal Class: Class 150 LB, PN20
Bore Type: Full Bore or Reduced Bore
End Connection: FF or RF Flanged
Operation: Gear
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800, ASTM B150 C63200, Monel
Seat Insert: RPTFE
Face to Face: ASME B16.10
Test and Inspection: API 598, API 6D
Key Features: Double Block&Bleed(DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency Sealant Injection, Low Emission(Optional), DIB (Optional), Aluminum Bronze for Sea Water Service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: RF, FF
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
