ASTM A995 6A Dual Plate Check Valve, 8 Inch, 1500 LB, RTJ

Key Specifications / Features

Model no. : 8SBS15L6A

This ASTM A995 6A dual plate check valve is made of super duplex stainless steel with a lug end design and Viton seat. It is API 594 compliant and has an 8-inch size, 1500 LB pressure rating, and CD3MWCuN material grade such as S32760 and F55 with 1.4501 nominal compositions.

Detail Information

ASTM A995 6A Super Duplex Stainless Steel Dual Plate Check Valve, A995 6A, S32760, F55, 1.4501, CD3MWCuN, API 594, 8 Inch, 1500 LB, Lug End, Viton Seat

Valve Description:
1842006 Dual Plate Check Valve 8SBS15L6A
Design Standard: API 594, API 6D
Structure: Dual Plate spring returns
Nominal size: 8 Inch
Nominal class: 1500 LB
End Connection: LUG-RTJ
Operation: /
Body Material: ASTM A995 6A
Trim Material: A995 6A disc, X-750 Spring, Viton seat
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, High flow efficiency, Low noise, Short face-to-face length, High Anti-corrosion material, seawater service

Product Range:
Body material: Duplex Steel
Normal diameter:  2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -29℃ - +120℃
Operation: /

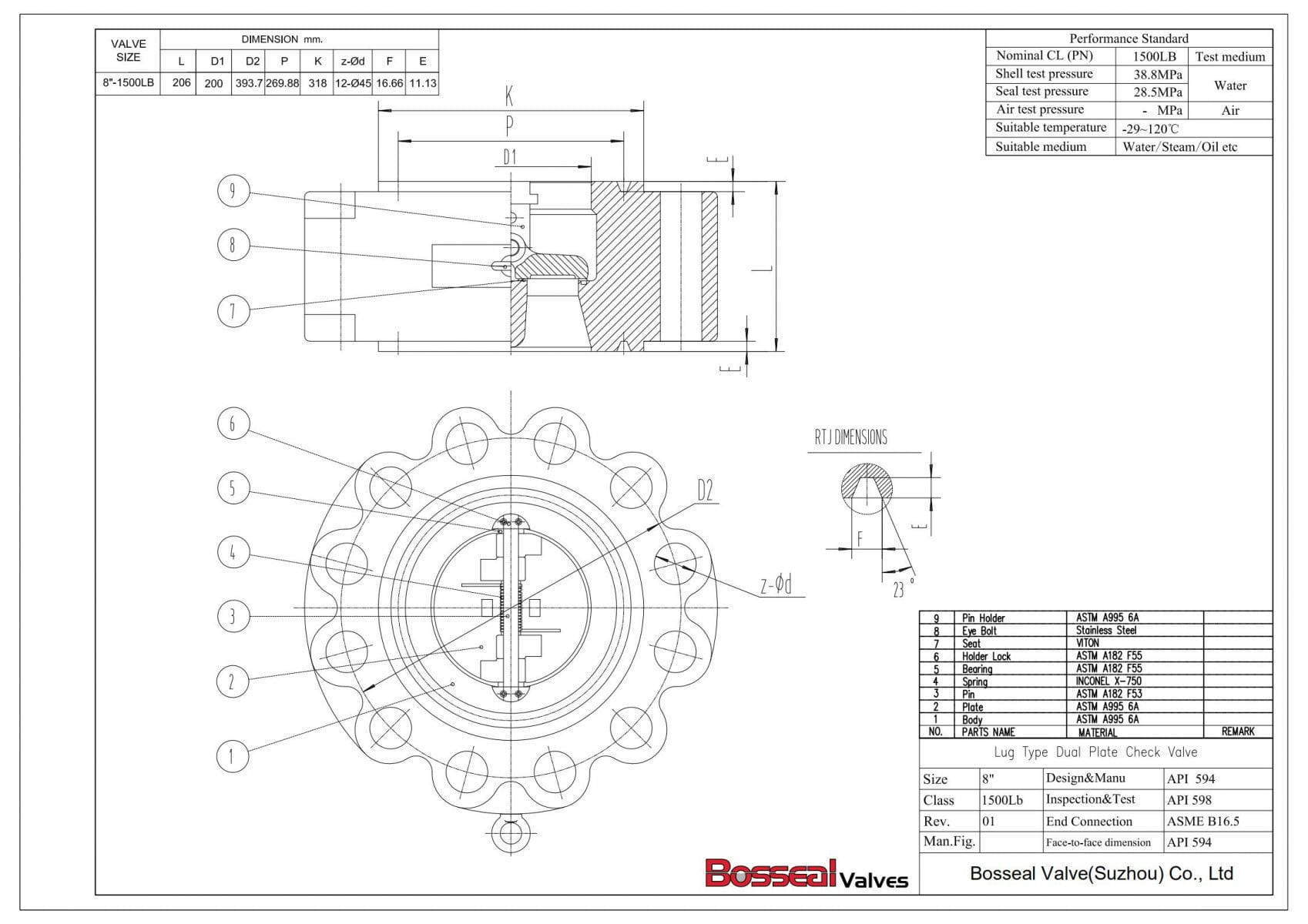

ASTM A995 6A Check Valve Tech Drawing
