ASTM A890 5A Wafer Butterfly Valve, CL300, 48 IN, API 609

Name: ASTM A890 5A Wafer Butterfly Valve, CL300, 48 IN, API 609
SKU: 1862200
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1862200

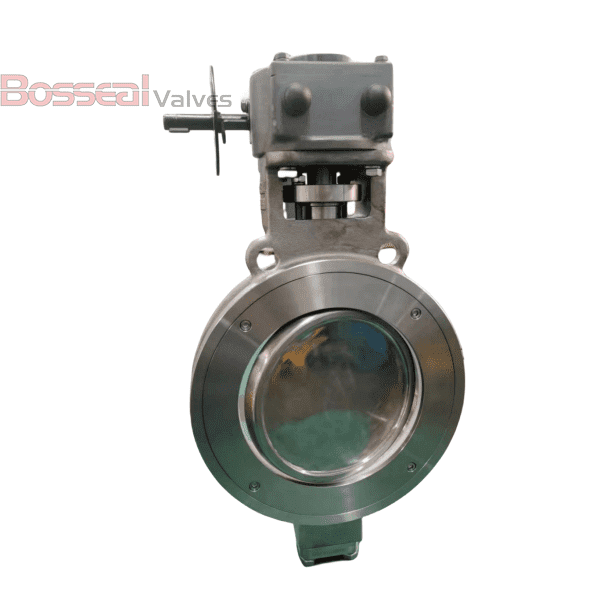

As a supplier of double offset wafer butterfly valves, we provide high-performance solutions built to meet API 609 Category B standards. Our double eccentric design, crafted from durable ASTM A890 5A material, ensures reliable operation in demanding applications. With a large 48-inch (DN1200) size and Class 300 LB pressure rating, these valves feature a 17-4PH stem for superior strength and durability. The soft seat guarantees a tight seal for optimal performance, while the wafer design allows for easy installation. Ideal for industrial environments, our valves deliver both efficiency and longevity.

Request a quote

Tags:

ASTM A890 5A Butterfly Valve

48 Inch Butterfly Valve

DN1200 Butterfly Valve

Detail Information

API 609 Category B Butterfly Valve, Wafer End, 48 Inch/DN1200, 300 LB, Gear Operation.

Valve Description

1862200 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 48 Inch, DN1200
Nominal Class: Class 300 LB, PN50
Structure: Double Offset, Double Eccentric
Body Material: ASTM A890 5A, ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Seat: RPTFE, PPL
End Connection: Wafer
Operation: Gear
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
