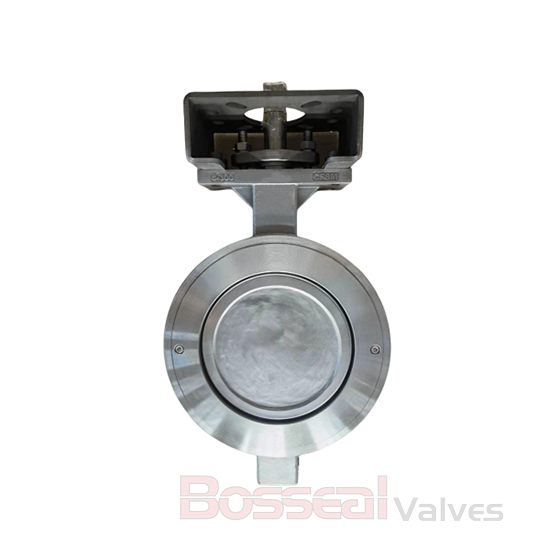

ASTM A890 5A Wafer Butterfly Valve, CL 150, 16 IN, API 609

Key Specifications / Features

Model no. : 1862294

As a leading API 609 Category B butterfly valve factory, we manufacture high-performance valves designed to meet EN 593 standards. Our 16-inch butterfly valves feature a double eccentric design and are constructed from robust ASTM A890 5A duplex stainless steel, ensuring durability and corrosion resistance. Rated at 150 LB, these valves include a soft seat for enhanced sealing and a Monel K500 stem for superior corrosion protection in demanding environments. With a commitment to quality and performance, we provide reliable solutions for a wide range of industrial applications.

Detail Information

EN 593 Double Eccentric Butterfly Valve, API 609 Cat B, 16 Inch/DN400, 150 LB, Wafer End.

Valve Description

1862294 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A890 5A, ASTM B148 C95800, Titanium, ASTM A890 4A, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M.
Nominal Size: 16 Inch, DN400
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
End Connection: Wafer
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Operation: Gear
Seat: RPTFE, PPL

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
