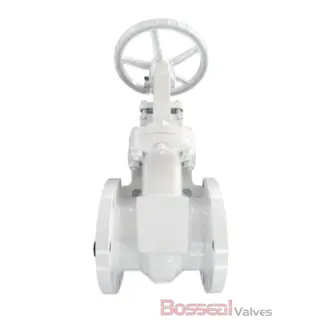

ASTM A890 5A Gate Valve, 2 IN, 1500 LB, API 600, RTJ Flanged

Key Specifications / Features

Model no. : 1821127

As a trusted API 600 gate valve supplier in China, we provide high-quality valves designed for demanding industrial applications. Our 2-inch (DN50) gate valve, made from ASTM A890 5A duplex stainless steel, offers exceptional durability and corrosion resistance. Rated for 1500 LB (PN150) pressure, it features an OS&Y configuration, RTJ flanged ends, and a flexible wedge design, ensuring reliable sealing and performance in high-pressure environments. Engineered to meet stringent industry standards, our valves deliver long-lasting performance and safety for critical operations.

Detail Information

Flexible Wedge Gate Valve, ASTM A890 5A Body, 2 IN/DN50, 1500 LB, OS&Y, Bolted Bonnet, RTJ Flanged.

Valve Description

1821127 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Bore Type: Standard Bore(API 600)
Body Material: ASTM A890 5A, ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800.
Nominal Size: 2 Inch, DN50
Nominal Class: 1500 LB, PN250
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: RTJ Flanged
Operation: Handwheel/Gear

Key Features

1. OS&Y (Outside Screw and Yoke) design for reliable operation.
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
