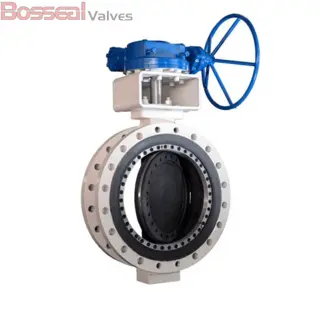

ASTM A890 5A Flanged Butterfly Valve, CL150, 32 IN, EN 593

Name: ASTM A890 5A Flanged Butterfly Valve, CL150, 32 IN, EN 593
SKU: 1862385
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1862385

Our 32-inch API 609 Category B butterfly valve is designed for exceptional performance and durability. Constructed from ASTM A890 5A material, it features a double offset design and flanged connections. The soft seat ensures tight sealing, while the Monel K500 stem offers corrosion resistance. Engineered for million-cycle operations, this valve provides lower torque and excellent control characteristics. With bi-directional sealing under full pressure and an optional fire-safe seat, it’s the ideal choice for demanding applications. Experience long-lasting reliability and superior performance with our high-quality butterfly valves.

Request a quote

Tags:

ASTM A890 5A Butterfly Valve

Double Offset Butterfly Valves

API 609 Butterfly Valve

Detail Information

EN 593 Double Offset High-Performance Butterfly Valves, 5A Body, 32 Inch, Class 150 LB, Flanged Ends.

Valve Description

1862385 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800, Titanium, ASTM A351 CF8M.
Nominal Size: 32 Inch, DN800
Nominal Class: Class 150 LB, PN16
Seat Type: Soft Seat
Operation: Gear
Trim Material: ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Structure: Double Offset, Double Eccentric
Test and Inspection: API 598, API 609

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles)
2. Reduced torque for smoother operation
3. Replaceable seat for easy maintenance
4. Reliable tight sealing performance
5. Superior control characteristics
6. Bi-directional sealing under full pressure
7. Fire-safe seat option available

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150, 300 LB
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
