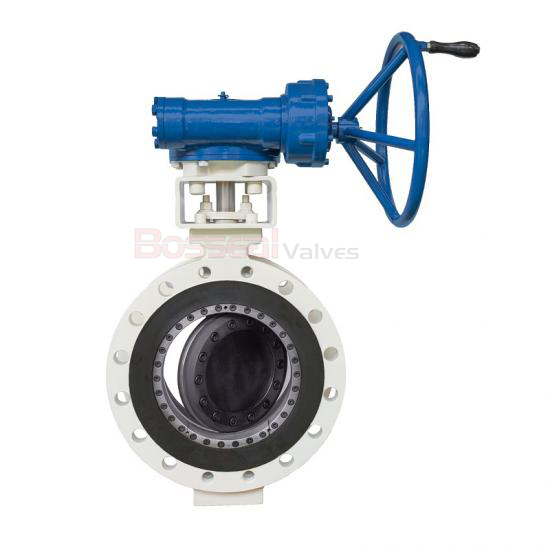

API 609 Category B
Butterfly Valve, 8 Inch/DN200, 300 LB, Soft Seat, Double Flanged End.
Valve Description
Double offset butterfly valves are commonly used in pipelines for isolation and regulating applications, particularly where frequent opening and closing are required. Bosseal valves offer several advantages, including zero leakage, low torque operation, a long working life, and low emissions. They provide reliable bi-directional sealing and come with fire-safe features, making them suitable for demanding industrial environments.
| 1862269 High-Performance Butterfly Valve |
| Design Standard: |
EN 593, API 609 Category B |
| Nominal Size: |
8 Inch, DN200 |
| Nominal Class: |
Class 300 LB, PN50 |
| Seat Type: |
Soft Seat |
| Operation: |
Gear |
| Body Material: |
ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8M, Titanium, ASTM A216 WCB, ASTM A351 CF8, ASTM B148 C95800. |
| Seat: |
RPTFE, PPL |
| Face to Face: |
API 609, EN 593 |
| Test and Inspection: |
API 598, API 609 |
| End Connection: |
Double Flanged |
| Trim Material: |
ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Structure: |
Double Offset, Double Eccentric |
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Fire-safe Seat VS Non-Fire-safe Seat
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
