Key Specifications / Features

Model no. : 1842060

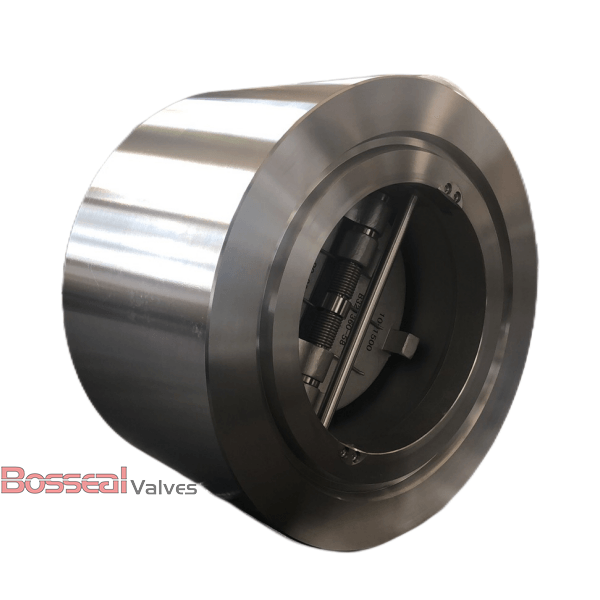

Our factory in China specializes in manufacturing 2-inch dual plate non-return valves, compliant with API 594, API 6D, and constructed from ASTM A890 4A duplex stainless steel. These valves are rated Class 600 LB and feature wafer ends with spring-loaded mechanisms. Each valve is equipped with two plates actuated by separate high-torsion springs, ensuring rapid closure, reduced water hammer effects, extended service life, and superior sealing performance. Designed for optimal reliability and efficiency, our valves provide enhanced durability and performance in demanding applications.


Detail Information

Duplex Stainless Steel Non-Return Valve, Dual Plate, API 594, 2 Inch, Class 600 LB, ASTM A890 4A Body, Wafer Ends.

Valve Description

1842060 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 2 Inch, DN50
Nominal Class: 600 LB, PN100
Body Material: ASTM A890 4A, ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Optional Soft and Metal Seat, Compact Design, Independent Spring, Unique Slim Plate Design.
Applications: Water and Wastewater Treatment, Oil and Gas Industry, Chemical Processing, Power Generation, HVAC Systems, Marine Industry, Fire Protection Systems, Food and Beverage Industry.


Product Portfolio

Operation: Not Applicable (Manual or actuated available for special request)
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: 150 - 2500 LB
End Connection: Wafer, Lug, Flanged-RF, RTJ
Working Temperature: -196°C to +450°C

Features

Retainerless Body

Bosseal dual plate valve is one-piece design without hole through the body, there is no external pins to retain the disc/stem, so that no external leakage point, it’s a good choice for critical service.

Independent Spring

The two plates are actuated by two separate high torsion springs and it ensure a quick closing, lower water hammer effection, longer working life and better sealing performance.

Optional Soft and Metal Seat

Metal Seat: STL(CoCr alloy) overlay on body seat, suitable for high temperature.
Soft Seat: Viton, EPDM, NBR, PTFE(not recommend).

Unique Slim Plate Design

The plate size and shape are well designed to have light weight, good flow efficiency, low pressure loss, fast operation and better sealing performance under low pressure.
