ASTM A890 4A Gate Valve, API 600, 40 Inch, 600 LB, OS&Y

Name: ASTM A890 4A Gate Valve, API 600, 40 Inch, 600 LB, OS&Y
SKU: 1821103
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1821103

Our 40-inch (DN1000) gate valves are built to API 600 standards. Made from ASTM A890 4A, these valves are rated at Class 600 LB and feature an OS&Y configuration with a flexible wedge and pressure seal bonnet for enhanced sealing performance. The design includes a screwed-in back seat, rising stem, and non-rising handwheel for easy operation. With a low-emission design, these RF flanged valves are ideal for demanding industrial applications, providing reliable flow control and long-lasting durability. As a leading gate valve manufacturer in China, we are committed to delivering top-quality products to meet your needs.

Request a quote

Tags:

ASTM A890 4A Gate Valve

API 600 Gate Valve

40 Inch Gate Valve

Detail Information

API 600 Gate Valve, OS&Y, 40 Inch/DN1000, 600 LB, RF Flanged, Pressure Seal Bonnet.

Valve Description

1821103 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Bore Type: Standard Bore(API 600)
Body Material: ASTM A890 4A, ASTM A351 CF8, ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 5A, ASTM B148 C95800
Nominal Size: 40 Inch, DN1000
Nominal Class: Class 600 LB, PN100
End Connection: RF Flanged
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld).
Working Temperature: -29°C - +400°C
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal

Next: ASTM A890 5A Gate Valve, 42 IN, CL 600, Bolted Bonnet

Previous: ASTM A351 CF8M Gate Valve, 36 IN, CL600, OS&Y, Bolted Bonnet

Similar Products

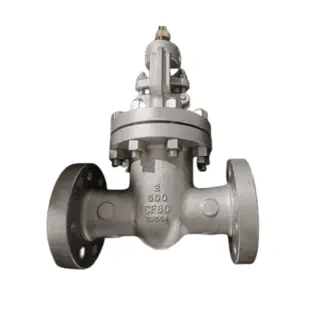

ASTM A351 CF8C Gate Valve, API 600, 603, 2 Inch, 600 LB, RF
