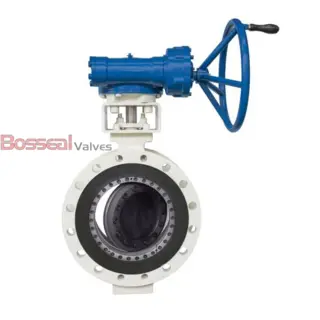

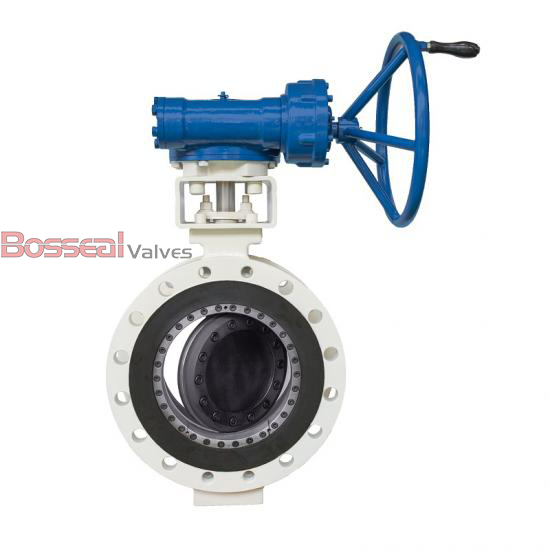

ASTM A890 4A Double Offset Butterfly Valve, CL150, 48IN

EN 593 High-Performance Butterfly Valves, 48 Inch, Class 150 LB, Double Offset.

Valve Description

1862305 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A890 4A, ASTM B148 C95800, Titanium, ASTM A351 CF8, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8M.
Nominal Size: 48 Inch, DN1200
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Trim Material: ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium
Seat: RPTFE, PPL
End Connection: Wafer
Face to Face: API 609, EN 593
Structure: Double Offset, Double Eccentric
Test and Inspection: API 598, API 609

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles)
2. Reduced torque for smoother operation
3. Replaceable seat for easy maintenance
4. Reliable tight sealing performance
5. Superior control characteristics
6. Bi-directional sealing under full pressure
7. Fire-safe seat option available

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150, 300 LB
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
