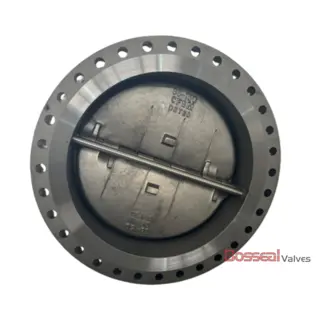

ASTM A890 4A Check Valve, 14 Inch, CL 1500 LB, API 594

Key Specifications / Features

Model no. : CV-20240816-07

Our 14-inch duplex stainless steel check valve, crafted from ASTM A890 4A material, meets API 594 and API 6D standards. Featuring a compact design and Class 1500 LB pressure rating, it includes flanged connections for easy installation. This robust valve combines durability with a streamlined design, ensuring reliable performance in demanding applications. As a leading check valve manufacturer from China, we are committed to delivering high-quality solutions that meet the highest industry standards.


Detail Information

API 594 Dual Plate Check Valve, ASTM A890 4A, 14 Inch, 1500 LB, Compact Design, Flanged Ends.

Check Valve Specification

1842110 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 14 Inch
Nominal Class: ANSI Class 1500 LB
Body Material: ASTM A890 4A, ASTM A351 CF8M, ASTM A352 LCB, Titanium Alloy, ASTM A890 5A, ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598


Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Seat Type: Soft Seat, Metal Seat
