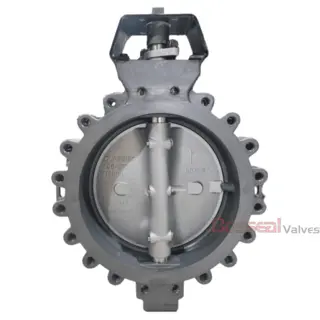

ASTM A890 4A Butterfly Valve, CL 300, 24 IN, EN 593, API 609

Key Specifications / Features

Model no. : 1862234

As a premier factory specializing in high-performance butterfly valves, we provide solutions that meet API 609 Category B and EN 593 standards. Our 24-inch valves, constructed from ASTM A890 4A material, feature a double eccentric design and a Class 300 LB rating. Equipped with a soft seat and lug ends, they ensure reliable sealing and ease of installation. The gear operation allows for smooth and precise control, making these valves ideal for a variety of industrial applications requiring durability and high-performance functionality.

Detail Information

EN 593 High-Performance Butterfly Valve, API 609, 24 Inch/DN600, 300 LB, Double Eccentric.

Valve Description

1862234 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A890 4A, ASTM B148 C95800, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 5A, Titanium.
Nominal Size: 24 Inch, DN600
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
End Connection: Lug
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Operation: Gear
Seat: RPTFE, PPL

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
