ASTM A694 F65 DBB Ball Valve, 10000 PSI, API 6D, API 6A, 3/4 Inch

Key Specifications / Features

Model no. : 0.75DBF100HF65

Explore our Modular DBB Floating Ball Valve Factory featuring a 3/4 Inch size, DN20 specifications, and a robust design capable of withstanding pressures up to 10000 PSI. This valve is DBB-certified and complies with API 6D, API 6A, and ASTM A694 F65 standards. With F6A Trim, PEEK Seat, HUB End, and Lip Seal Sealing, it ensures reliable performance and durability for various industrial applications.


Detail Information

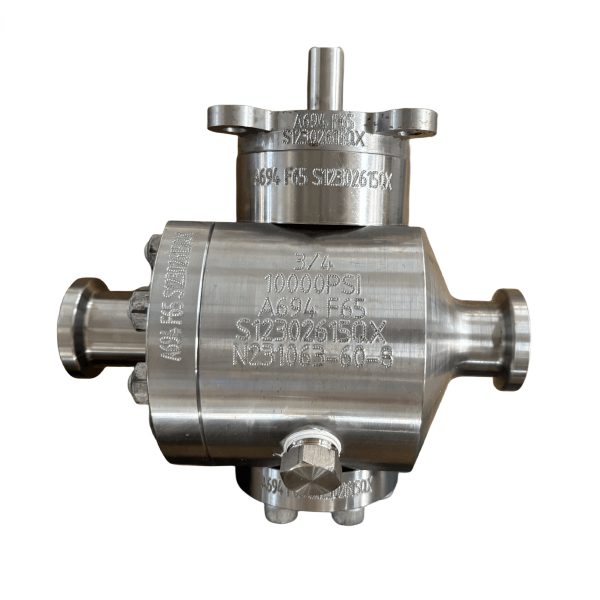

3/4 IN 10000 PSI Modular Double Block and Bleed Ball Valve, API 6D, API 6A, HUB End, Floating Ball, A694 F65 Body, F6A Trim, PEEK Seat, Lip Seal Sealing, Gear Operation

Valve Description:
1813007 Modular Double Block and Bleed Ball Valve 0.75DBF100HF65
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Double Ball Compact body
Nominal size: 3/4 Inch
Nominal class: 10000 PSI
Bore Type: Full Bore
End Connection: HUB End
Operation: Gear
Body Material: ASTM A694 F65
Trim Material: ASTM A182 F6A, PEEK, Lip Seal PTFE+UNS R30003
Face to face: Manufacturer Standard
Test and inspection: API 598, API 6D
Key Features: Double Ball, Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Lip seal, Low fugitive emission stem packing

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
