ASTM A352 LCC Trunnion Mounted Ball Valve, 4 Inch, 600 LB

Name: ASTM A352 LCC Trunnion Mounted Ball Valve, 4 Inch, 600 LB
SKU: 4bs6rlcc
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 4BS6RLCC

This 4-inch trunnion-mounted ball valve is an API 6D compliant valve with a 600-pound rating. The valve features a gear operation and has a two-piece casting body. The ball and seat are made of 17-4PH material while the seat features RPTFE material for added durability. With an RF connection, this valve is a reliable choice for a variety of industries.

Request a quote

Tags:

Trunnion Ball Valve

4 Inch Ball Valve

Class 600 LB Ball Valve

Detail Information

4 Inch 600 LB LCC Trunnion Mounted Ball Valve, API 6D, RF, 2pcs Casting body, 17-4PH Ball & Seat, RPTFE Seat, Gear Operation

Valve Description:
1811015 Trunnion Mounted Ball Valve 4BS6RLCC
Design Standard: API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 4 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A352 LCC
Trim Material: 17-4PH stem & ball & seat, RPTFE Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe API 607/6FA, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 900 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

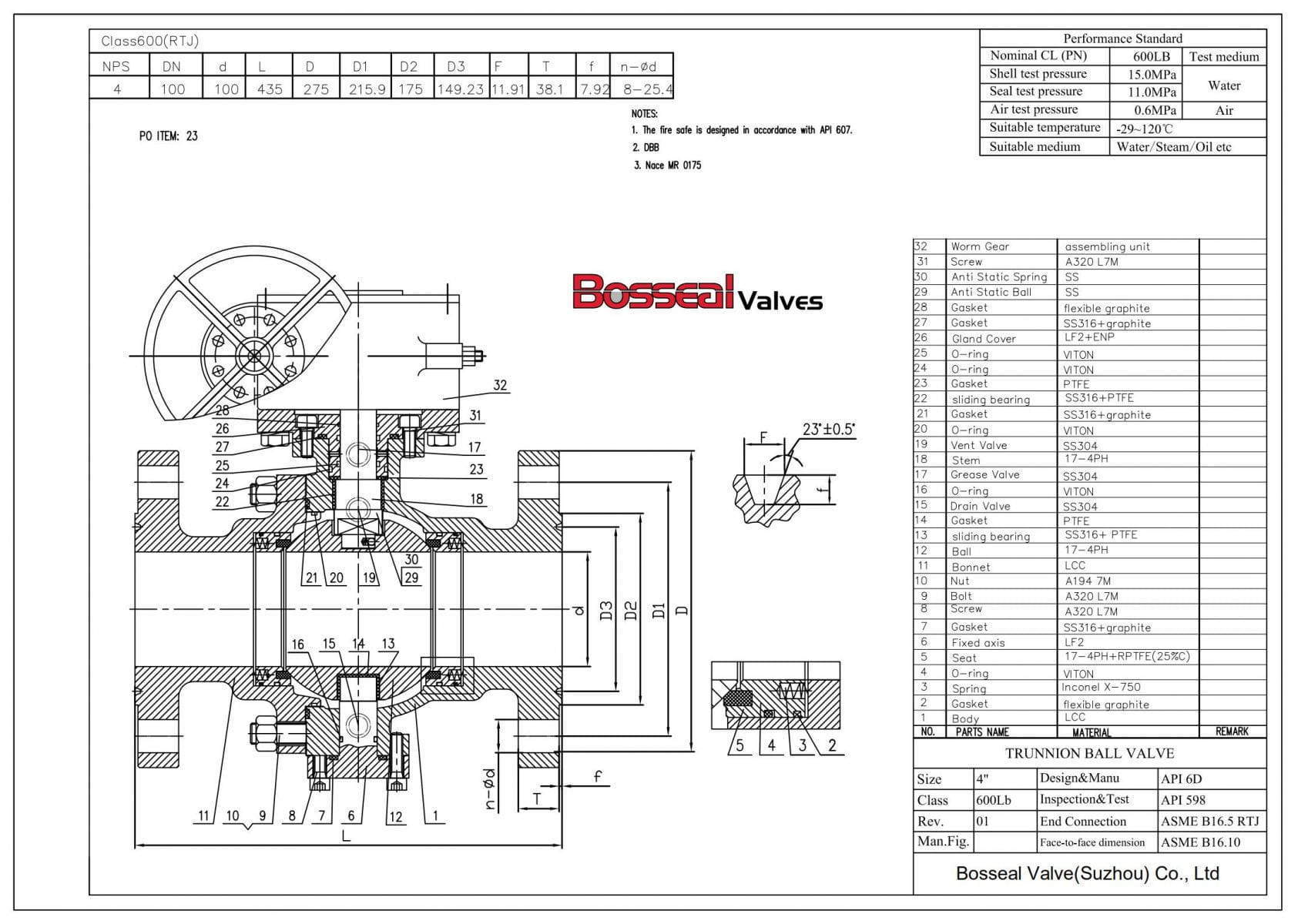

LCC Trunnion Mounted Ball Valve Tech Drawing
