ASTM A352 LCB Trunnion Ball Valve, 4 Inch, 300 LB, API 6D

Key Specifications / Features

Model no. : 4BS3RLCB

Buy ASTM A352 LCB trunnion mounted ball valve for low-temperature service, API 6D certified, 4-inch nominal size, 300 LB pressure rating, raised face connection, equipped with 17-4PH stem, F316 ball & seat, RPTFE seat, operated by a lever, and compliant with Nace MR0175 standard.


Detail Information

ASTM A352 LCB Trunnion Mounted Ball Valve for Low Temperature, API 6D, 4 Inch, 300 LB, RF, 17-4PH stem, F316 ball & seat, RPTFE seat, Lever Operation, Nace MR0175

Valve Description:
1811024 Trunnion Mounted Ball Valve 4BS3RLCB
Design Standard: API 6D
Structure: Two pieces casting body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 4 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lockable Lever
Body Material: ASTM A352 LCB
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 900 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

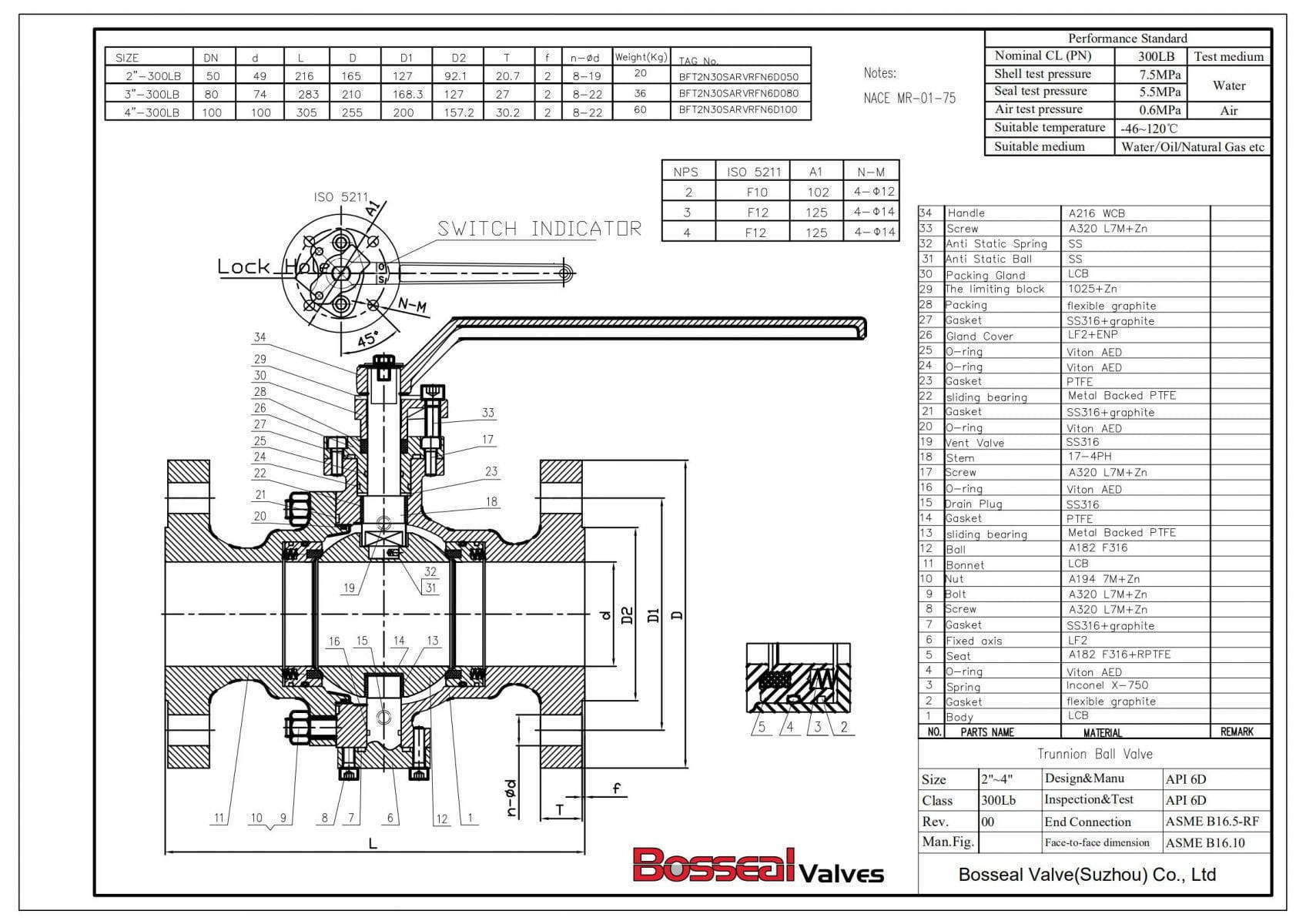

LCB Trunnion Ball Valve Tech Drawing
