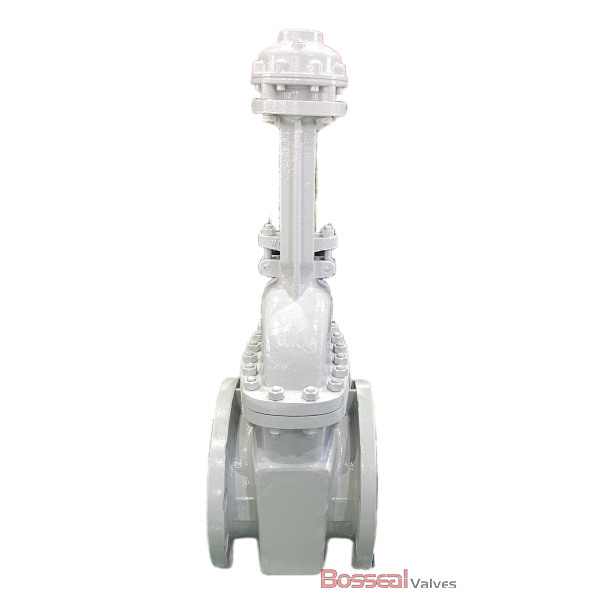

ASTM A352 LCB Gate Valve, API 600, 30 Inch, CL 600, OS&Y

Key Specifications / Features

Model no. : 1821100

We specialize in manufacturing API 600 gate valves with carbon steel ASTM A352 LCB bodies. Our 30-inch (DN750) valves feature an OS&Y design and a flexible wedge for reliable performance and smooth operation. Rated at Class 600 LB, these valves come with RF flanged ends, ensuring secure and efficient connections. Engineered for durability and precision, our gate valves are ideal for high-pressure industrial applications, providing dependable flow control and long-lasting service. As a leading gate valve manufacturer in China, we are dedicated to delivering high-quality products to meet your needs.

Detail Information

API 600 Gate Valve, Flexible Wedge, 30 Inch/DN750, 600 LB, ASTM A352 LCB Body, OS&Y, Bolted Bonnet.

Valve Description

1821100 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800
Nominal Size: 30 Inch, DN750
Nominal Class: Class 600 LB, PN100
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
