ASTM A352 LCB Check Valve, 2-1/2 IN, CL 1500 LB, API 594, 6D

Name: ASTM A352 LCB Check Valve, 2-1/2 IN, CL 1500 LB, API 594, 6D
SKU: 1842103
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1842103

We specialize in fabricating API 594 dual plate check valves, designed to meet high-performance standards. Our valves, sized at DN65 (2-1/2 inches) and rated for CL 1500 LB, are constructed from ASTM A352 LCB for superior strength and durability. Compliant with API 6D, these valves feature a wafer design with lug ends for versatile installation. The independent spring-loaded mechanism ensures reliable and efficient operation, providing quick closure and minimizing water hammer effects. Ideal for demanding industrial applications, our check valves deliver robust performance and long-lasting reliability.

Request a quote

Tags:

ASTM A352 LCB Check Valve

2-1/2 Inch Check Valve

DN65 Check Valve

Detail Information

Carbon Steel Dual Plate Check Valve, 2-1/2 Inch/DN65, 1500 LB, API 594, A352 LCB Body, Wafer, Lug Ends.

Valve Description

1842103 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 2-1/2 Inch
Nominal Class: ANSI Class 1500, PN250
Body Material: ASTM A352 LCB, Titanium Alloy, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, ASTM A890 5A, ASTM A352 LCB, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598

Product Selection

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2-48 Inches (DN15 - DN1200)
Pressure Range: Class 150-2500 LB
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Working Temperature: -196°C - +450°C
Seat Type: Soft Seat, Metal Seat

Next: API 6D Dual Check Valve, 3 Inch, Class 1500 LB, B148 C95800

Previous: ASTM A351 CF8M Dual Plate Check Valve, API 594, 6 IN, 150 LB

Similar Products

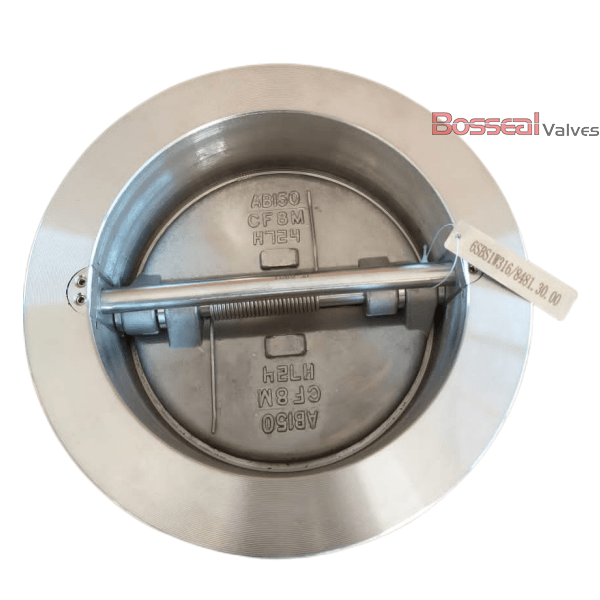

API 594 Check Valve, 2-1/2 IN, CL 2500 LB, ASTM A352 LCB

ASTM A352 LCB Non-Return Valve, 2-1/2 Inch, 300 LB, API 594

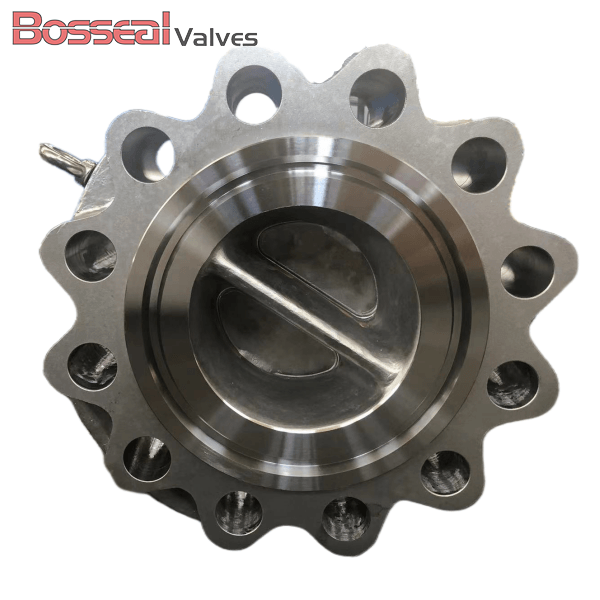

ASTM A352 LCB Dual Plate Check Valve, 2-1/2 IN, Class 150 LB
