ASTM A352 LCB Check Valve, 16 IN, CL 600 LB, API 6D, API 594

Key Specifications / Features

Model no. : 1842069

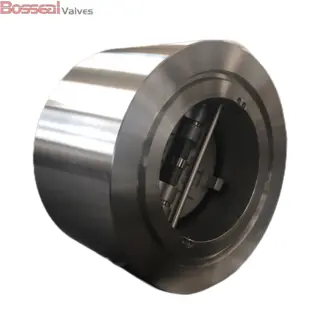

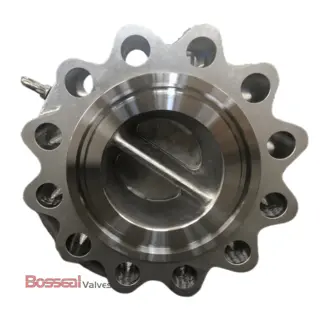

We specialize in supplying high-quality API 6D dual plate check valves, renowned for their efficiency and reliability. Our non-return valves, compliant with API 594, are constructed from ASTM A352 LCB material. Designed for 16-inch pipelines and rated for Class 600 LB, these valves are available with wafer or flanged ends to suit various installation needs. The spring-loaded design features a one-piece body, central pin, and two plates that pivot on the pin, allowing fluid to flow in one direction while preventing backflow. Compared to conventional swing check valves, our dual plate check valves offer significant weight and length reductions, resulting in cost and space savings for your piping system.

Detail Information

API 6D Dual Plate Check Valve, Non-Return Valve, 16 Inch, Class 600 LB, A352 LCB Body, Wafer/Lug/Flanged.

Check Valve Specification

1842069 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 16 Inch, DN400
Nominal Class: Class 600 LB, PN100
Body Material: ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Optional Soft and Metal Seat, Independent Spring, Unique Slim Plate Design.

Product Line

Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
End Connection: Wafer, Lug, Flanged-RF, RTJ
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request).
