ASTM A351 CF8M Wafer Butterfly Valve, API 609, 3 IN, CL 300

Key Specifications / Features

Model no. : 1862056

As a leading API 609 butterfly valve factory from China, we manufacture high-quality 3-inch (DN80) double eccentric butterfly valves using stainless steel ASTM A351 CF8M. Designed to meet EN 593 and Category B standards, these valves are rated for 300 LB and feature a robust 17-4PH stem for enhanced strength and durability. Engineered for reliable performance, they offer exceptional sealing and longevity in demanding applications. Ideal for various industrial environments, our valves deliver both high performance and long-lasting operation.

Detail Information

Stainless Steel Butterfly Valve, EN 593, Double Eccentric, 3 Inch/DN80, 300 LB, Wafer.

Valve Description

1862056 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 3 Inch, DN80
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Lever
Body Material: ASTM A351 CF8M, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.
Seat: RPTFE, PPL
End Connection: Wafer
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Top Mounting: ISO 5211 Top Mounting Available
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe


Name*
E-mail*
Rate*
Comments*

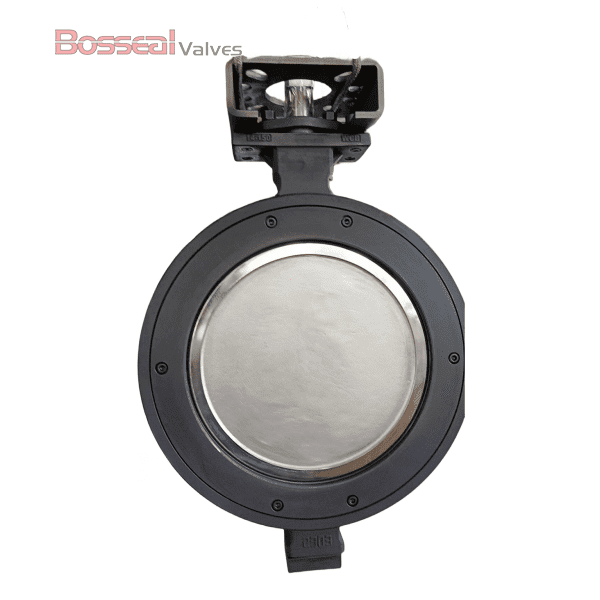

Next: ASTM A890 4A Butterfly Valve, 4 Inch, 300 LB, Double Offset
