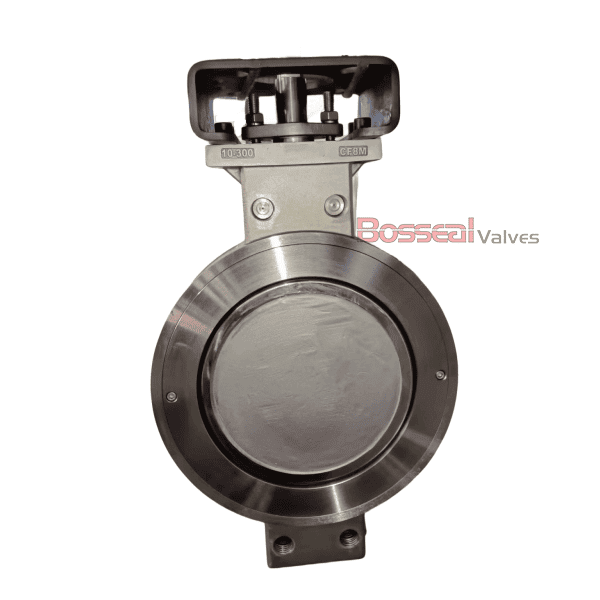

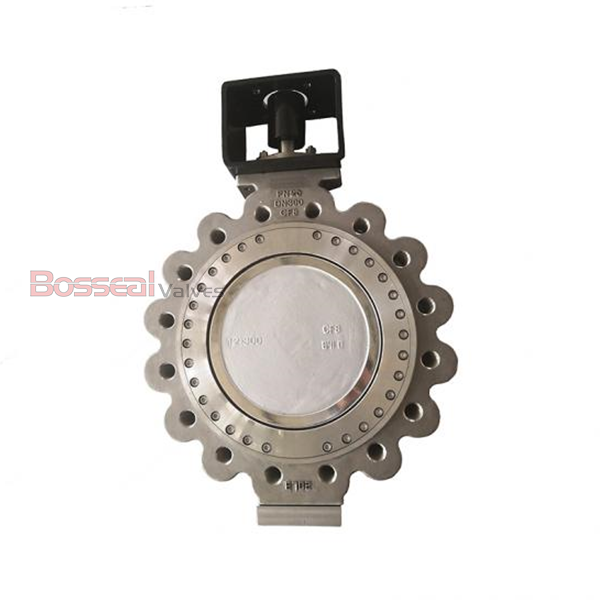

ASTM A351 CF8M Lug Butterfly Valves, EN 593, CL 300, 3 IN

Key Specifications / Features

Model no. : 1862224

As a leading factory specializing in double offset lug butterfly valves, we produce high-quality solutions that comply with API 609 and EN 593 standards. Our valves feature a robust ASTM A351 CF8M body, a 3-inch size, and a 300 LB rating. Equipped with a soft RPTFE seat and a 17-4PH stem, they ensure reliable sealing and durability. The lever operation allows for precise control, making these valves ideal for various industrial applications where performance and ease of use are critical.

Detail Information

Soft Seated Butterfly Valve, API 609 Category B, EN 593, CF8M Body, Double Eccentric.

Valve Description

1862224 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, Titanium, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 5A.
Nominal Size: 3 Inch, DN80
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Operation: Lever
Seat: RPTFE, PPL
End Connection: Lug
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
