API 600
Gate Valve, Flexible Wedge, 2-1/2 Inch/DN65, 1500 LB, ASTM A351 CF8M Body, OS&Y, Bolted Bonnet.
A gate valve is a multi-turn isolation valve for full open/close service in pipelines. It operates by moving a gate between two seats, typically metal with hard-facing for durability, or soft seats for specific uses like water. Its multi-turn design prevents water hammer and requires less space than other shut-off valves. Gate valves are ideal for low pressure drop and free bore, handling fluids like water, oil, steam, gas, and slurry.
Valve Description
1821128 Gate Valve
Design Standard: API 600

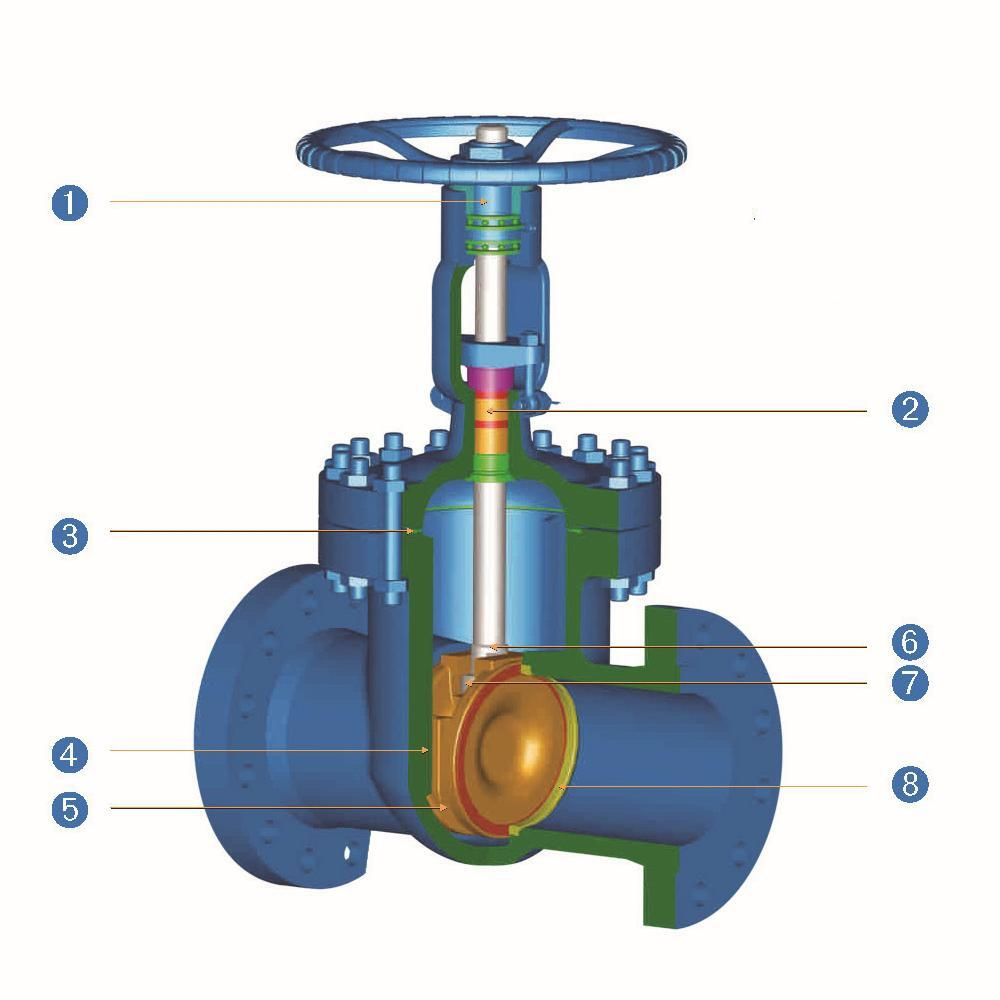

Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A351 CF8M, ASTM A352 LCB, ASTM A351 CF8, ASTM A216 WCB, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 1500 LB, PN250
Bore Type: Standard Bore(API 600)
End Connection: RTJ Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.
Product Range
| Body Material: |
Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze |
| Normal Diameter: |
2 Inch - 64 Inch (DN50 - DN1600) |
| Pressure Range: |
Class 150 LB - 2500 LB |
| Working Temperature: |
-29°C - +400°C |
| Operation: |
Handwheel/Gear/Motor |
| End Connections: |
RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld) |
| Bonnet Types: |
Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal. |
