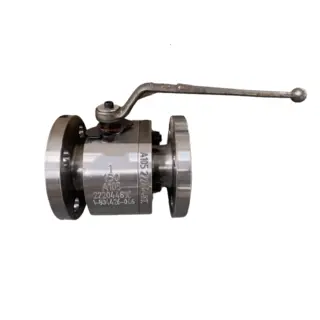

ASTM A351 CF8M Floating Ball Valve, 1 Inch, 150 LB, API 608

Key Specifications / Features

Model no. : 1B1RCF8M

Find your reliable floating ball valve provider for various specifications including 1 inch, DN25, Class 150 LB, PN20, API 608, ISO 17292, API 6D. Our two-piece body design, F316 trim, soft seat, and RF flanged connection, along with a lever operation, ensure top-notch performance and quality.


Detail Information

Floating Ball Valve, API 608, DN25, 150 LB, RF, A351 CF8M Body, F316 Trim, Soft Seat, ISO 5211 Mounting pad, Lever Operation

Valve Description:
1812018 Floating Ball Valve 1B1RCF8M
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 1 Inch, DN25
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Operation
Body Material: ASTM A351 CF8M
Trim Material: ASTM A182 F316, RPTFE/TFM 1600
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device

Product Range:
Body material: Stainless Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 300LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃

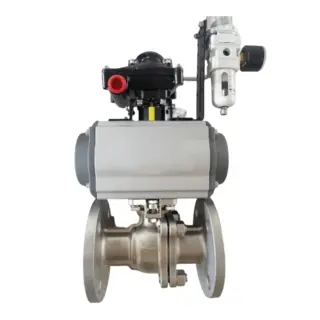

Operation: Lever, Spring Return Lever, Pneumatic Actuator
