Key Specifications / Features

Model no. : 1842092

We are a leading manufacturer of stainless steel dual plate check valves, offering high-performance solutions in a 20-inch (DN500) size. Our valves meet stringent API 594 and API 6D standards and are rated for Class 900 LB and PN150 applications. Designed with a compact structure, these valves feature wafer, lug, and flanged end configurations to ensure versatile installation options. Engineered for durability and efficiency, they provide reliable performance across a range of industrial applications. With their robust stainless steel construction, our check valves deliver superior resistance to corrosion and wear, making them ideal for demanding environments.


Detail Information

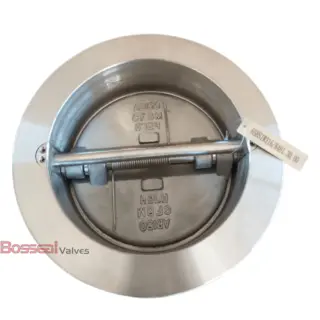

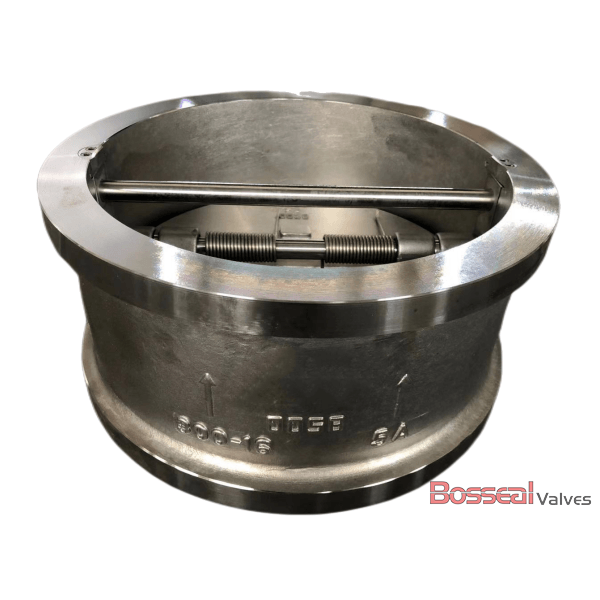

API 594 Dual Plate Check Valve, ASTM A351 CF8M, 20 Inch/DN500, 900 LB, Compact Design, Flanged Ends.

Check Valve Specification

1842092 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Key Features: Compact Design, Independent Spring, Optional Soft and Metal Seat, Unique Slim Plate Design.
Nominal Size: 20 Inch, DN500
Nominal Class: ANSI Class 900 LB, PN150
Body Material: ASTM A351 CF8M, ASTM A352 LCB, Titanium Alloy, ASTM A890 5A, ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8, ASTM A890 4A.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598


Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
Working Temperature: -196°C - +450°C
Operation: Not Applicable (Manual or actuated available for special request)
End Connections: Wafer, Lug, Flanged(FF, RF, RTJ), Butt Weld(BW), HUB
Seat Type: Soft Seat, Metal Seat
