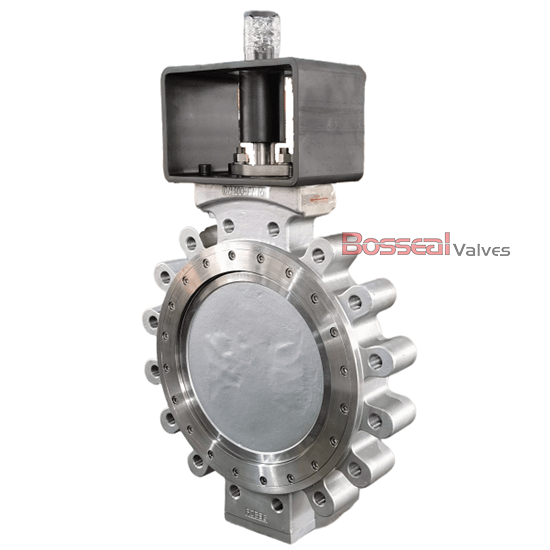

ASTM A351 CF8M Butterfly Valve, EN 593, API 609, CL300, 32 IN

Key Specifications / Features

Model no. : 1862238

As a specialized fabricator of double-offset butterfly valves, we provide high-performance solutions that comply with API 609 and EN 593 standards. Our 32-inch valves feature a robust A351 CF8M stainless steel body and disc, offering exceptional durability and corrosion resistance. Equipped with a 17-4PH stem, RPTFE seat, and lug ends, these valves are rated for 300 LB, ensuring reliable operation in demanding industrial applications. Engineered for superior sealing and smooth performance, our valves deliver long-lasting efficiency and precision, making them ideal for various pipeline control and isolation needs.

Detail Information

API 609 Double Offset Butterfly Valve, RPTFE Seat, 32 Inch, 300 LB, Gear Operation.

Valve Description

1862238 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 32 Inch, DN800
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8, ASTM A216 WCB, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Structure: Double Offset, Double Eccentric
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
