ASTM A351 CF8 Wedge Gate Valve, API 600, 3 IN, 900 LB

Key Specifications / Features

Model no. : 1821108

Our 3-inch flexible wedge gate valves are crafted to meet API 600 standards and feature durable ASTM A351 CF8 stainless steel construction. Rated for 900 LB pressure, these valves come in DN80 size with PN150 ratings. They include an OS&Y configuration, RTJ flanged ends, and a pressure seal bonnet (PSB). Designed for reliable operation, they are equipped with a handwheel for ease of use. As a leading manufacturer in China, we ensure high-quality production and performance for all our gate valves.

Detail Information

Pressure Seal Bonnet Gate Valve, API 600, ASTM A351 CF8 Body, 3 Inch/DN80, 900 LB, RTJ Flanged End.

Valve Description

1821108 Gate Valve
Design Standard: API 600
Body Material: ASTM A351 CF8, ASTM A890 4A, ASTM A216 WCB, ASTM A890 5A, ASTM A351 CF8M, ASTM A352 LCB, ASTM B148 C95800.
Nominal Size: 3 Inch, DN80
Structure: Bolted Bonnet/Pressure Seal Bonnet
Nominal Class: Class 900 LB, PN150
Bore Type: Standard Bore(API 600)
End Connection: RTJ Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal.

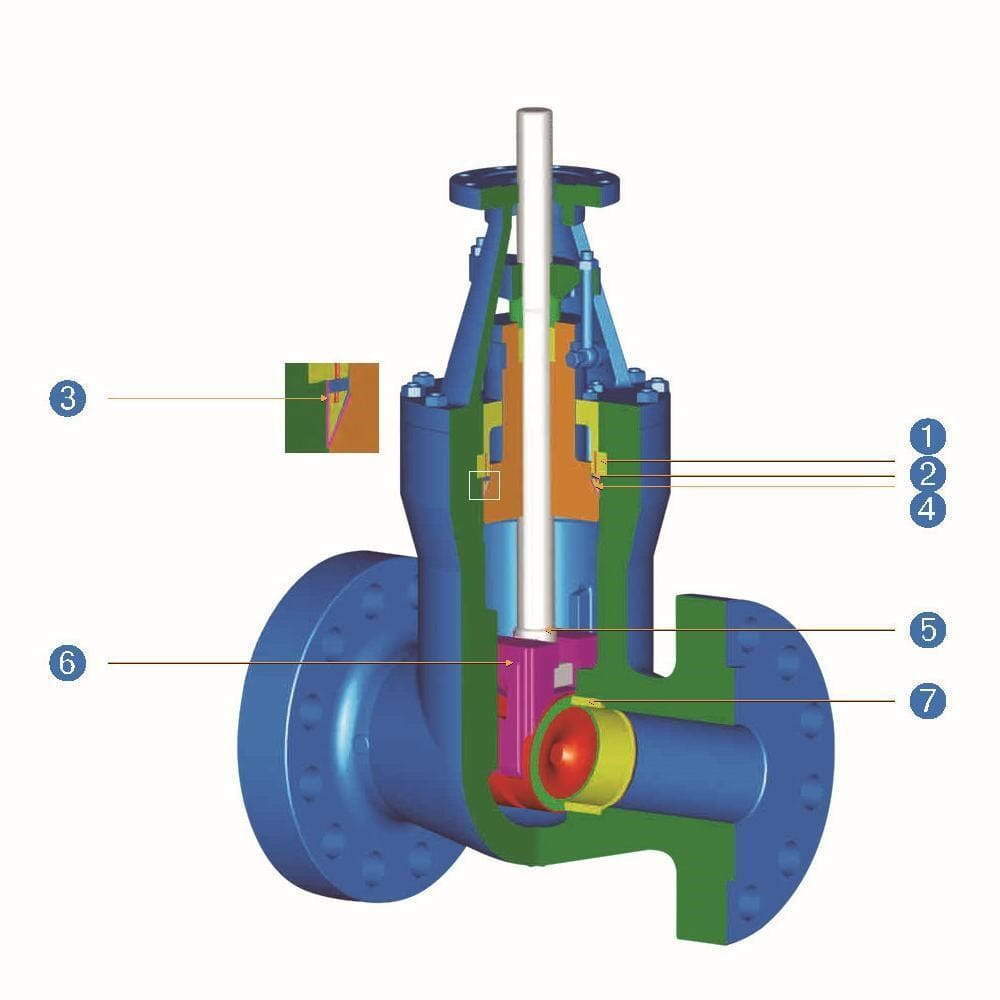

Pressure Seal Bonnet Gate Valve
Pressure Seal Bonnet Gate Valve

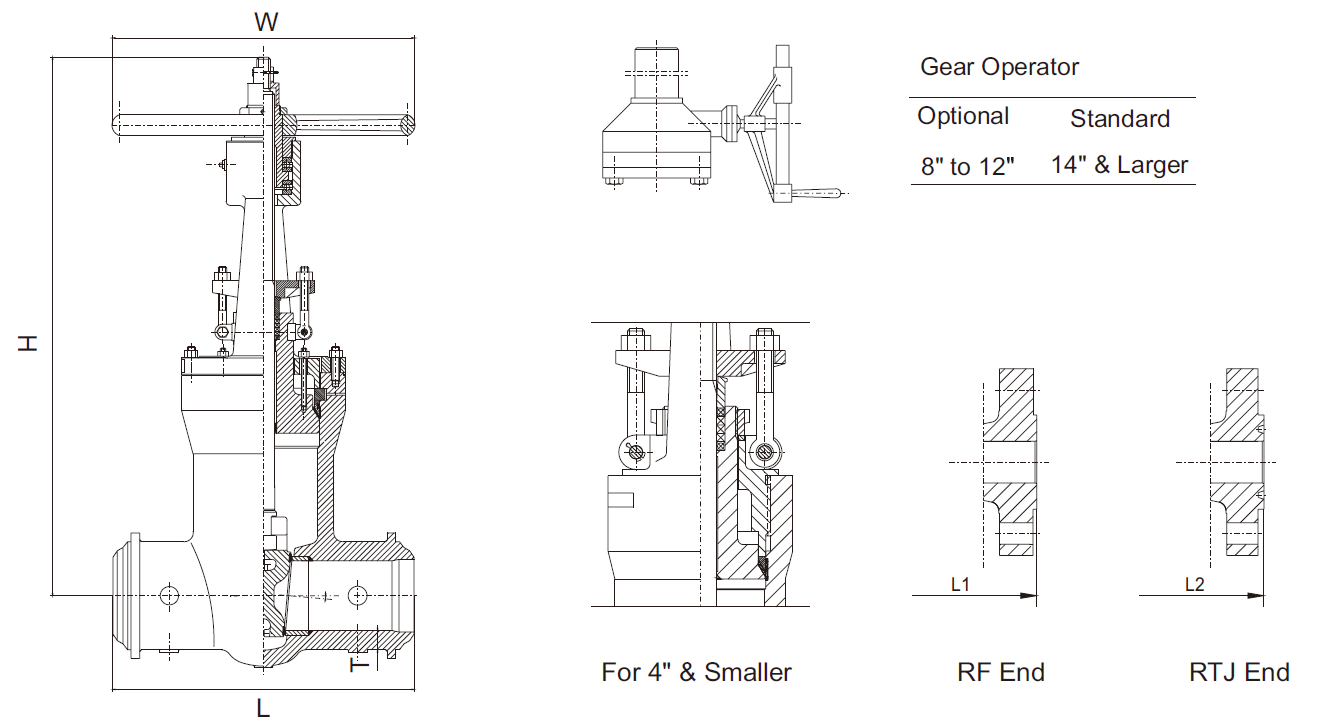

Drawing for Pressure Seal Bonnet Gate Valve
