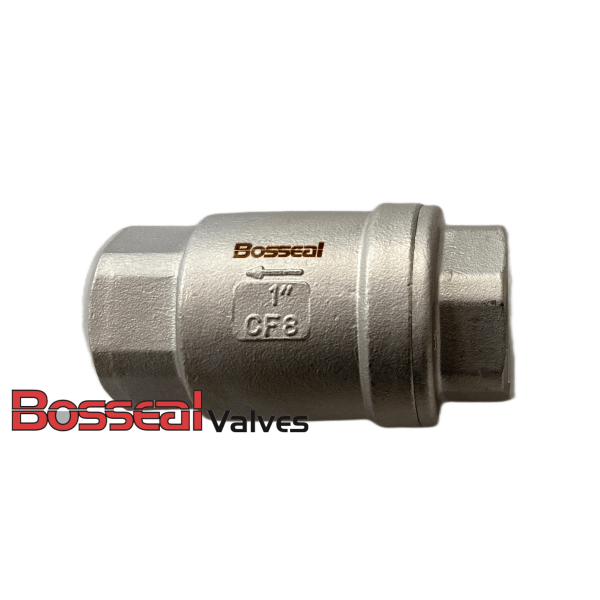

ASTM A351 CF8 Non-return Valve, 1 IN, 1000 PSI, ASME B16.34

Name: ASTM A351 CF8 Non-return Valve, 1 IN, 1000 PSI, ASME B16.34
SKU: 1s1ncf8
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 1S1NCF8

Explore our range of ASTM A351 CF8 non-return valves at our factory. These valves come in 1-inch (DN25) size, with a pressure rating of 1000 PSI, conforming to ASME B16.34 standards. Crafted with ASTM A182 F304 trim, featuring a 1-piece body design and threaded end for easy installation.

Request a quote

Tags:

ASTM A351 CF8 Check Valve

1 Inch Check Valve

ASME B16.34 Check Valve

Detail Information

Non-return Valve, dn25, 1000psi, CF8

Valve Description:
1872001 Threaded Check Valve 1S1NCF8
Design Standard: ASME B16.34
Structure: 1PC BODY
Nominal size: 1 Inch
Nominal class: 1000 PSI
Bore: Regular Bore
End Connection: Threaded
Operation: /
Body Material: ASTM A351 CF8
Trim Material: ASTM A182 F304
Face to face: Mfg's
Test and inspection: API 598

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500 LB
End connection: NPT
Working temperature: -29℃ - +400℃
Operation: /

Next: ASTM A351 CF8 Non-return Valve, 1/2 IN, 1000 PSI, Threaded

Similar Products

ASTM A351 CF8 Non-return Valve, 1/2 IN, 1000 PSI, Threaded

ASTM A182 F304L Swing Check Valve, 1 IN, 150 LB, API 602, RF

ASTM A182 F51 Swing Check Valve, API 602, 2 Inch, 1500 LB

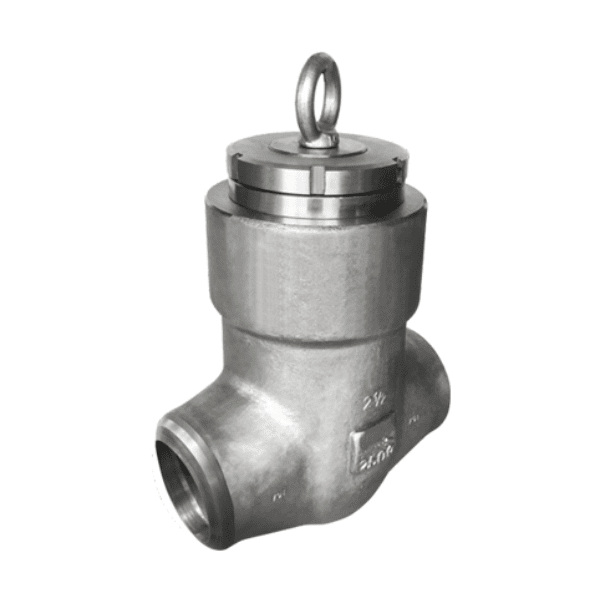

ASTM A182 F316 Swing Check Valve, 2-1/2 Inch, 2500 LB, BW
