ASTM A351 CF8 Gate Valve, API 600, 3 Inch, CL 150, OS&Y

Key Specifications / Features

Model no. : 1821045

Our API 600 gate valves feature a robust stainless steel ASTM A351 CF8 body, ensuring superior durability and corrosion resistance. Designed for 3-inch (DN80) applications, these valves operate efficiently under Class 150 LB standards. The RF flanged end provides a secure, leak-proof connection, while the handwheel or gear operation offers smooth and reliable control. As a leading manufacturer in China, we are committed to delivering high-quality, precision-engineered valves tailored to meet your industrial needs.

Detail Information

API 600 Gate Valve, 3 Inch/DN80, 150 LB, A351 CF8 Body, OS&Y, Bolted Bonnet.

Valve Description

1821045 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A351 CF8, ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800
Nominal Size: 3 Inch, DN80
Nominal Class: Class 150 LB, PN10
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.

Product Range

Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld).

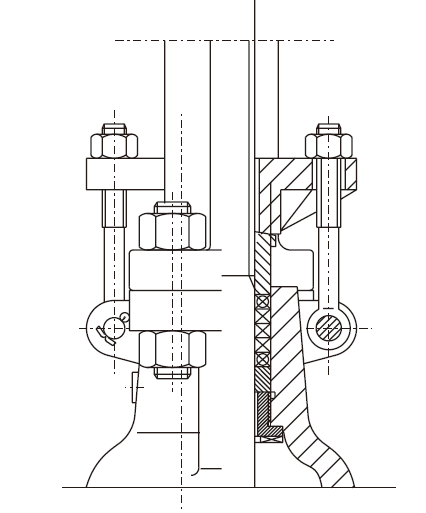

                                            Outside Screw and Yoke(OS&Y)
Outside Screw and Yoke(OS&Y)
