API 600

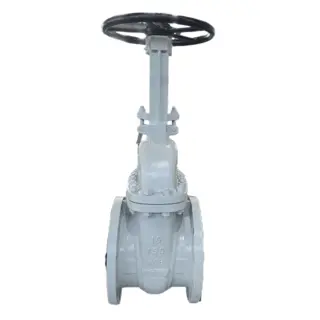

Gate Valve, ASTM A351 CF8 Body, 10 Inch/DN250, 2500 LB, PN420, RTJ Flanged, OS&Y.
Gate valves are multi-turn valves designed for full isolation, either fully open or closed. A threaded stem operates the valve, pressing the gate against two seats to block the fluid flow. Typically, the seats are metal with hard facing materials like stellite CoCrW or SS overlay for durability, though soft seats are available for specific uses like water. These valves require less installation space compared to other shut-off types and their gradual operation minimizes water hammer. Gate valves are versatile, suitable for a range of fluids including water, oil, steam, gas, and slurry.
Valve Description
| 1821154 Gate Valve |
| Design Standard: |
API 600 |
| Test and Inspection: |
API 598 |
| Structure: |
Bolted Bonnet/Pressure Seal Bonnet |
| Body Material: |
ASTM A351 CF8, ASTM B148 C95800, ASTM A890 5A, ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 4A. |
| Nominal Size: |
10 Inch, DN250 |
| Nominal Class: |
Class 2500 LB |
| Operation: |
Handwheel/Gear |
| Trim Material: |
ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55. |
| End Connection: |
RTJ Flanged |
| Bore Type: |
Standard Bore(API 600) |
| Face to Face: |
ASME B16.10 |
Key Features
1. OS&Y (Outside Screw and Yoke) design for reliable operation.
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.
Product Range
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
