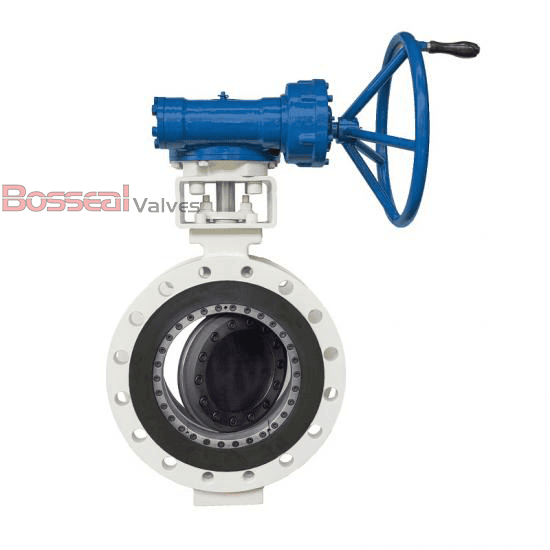

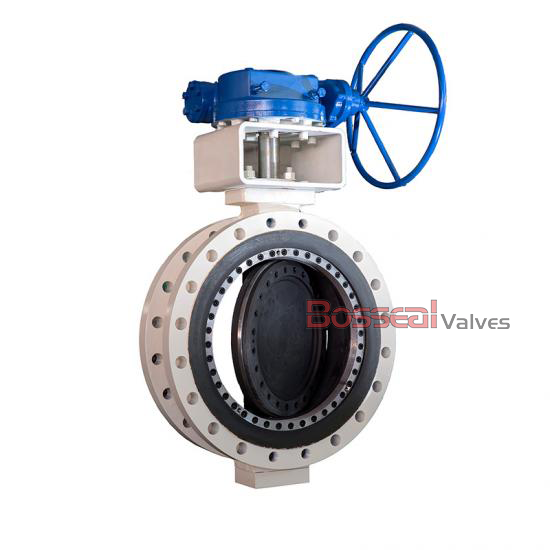

ASTM A351 CF8 Double Offset Butterfly Valve, 3 IN, CL 300

Key Specifications / Features

Model no. : 1862140

As a trusted supplier of double offset butterfly valves, we offer high-performance valves designed to meet API 609 Category B standards. Our 3-inch (DN80), Class 300 LB valves feature a double eccentric design for enhanced efficiency and reliability. Manufactured from ASTM A351 CF8 stainless steel with a 17-4PH stem, these valves provide excellent corrosion resistance and durability. The soft seat ensures tight sealing and optimal performance, making them suitable for a wide range of industrial applications. Built for long-lasting service, our valves deliver precision and efficiency under demanding conditions.

Detail Information

Stainless Steel Butterfly Valve, API 609 Category B, 3 Inch/DN80, 300 LB, Lever Operation.

Valve Description

1862140 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 3 Inch, DN80
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A351 CF8, ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 4A, ASTM A216 WCB, ASTM A890 5A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Lever
Seat: RPTFE, PPL
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2  - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150  - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
