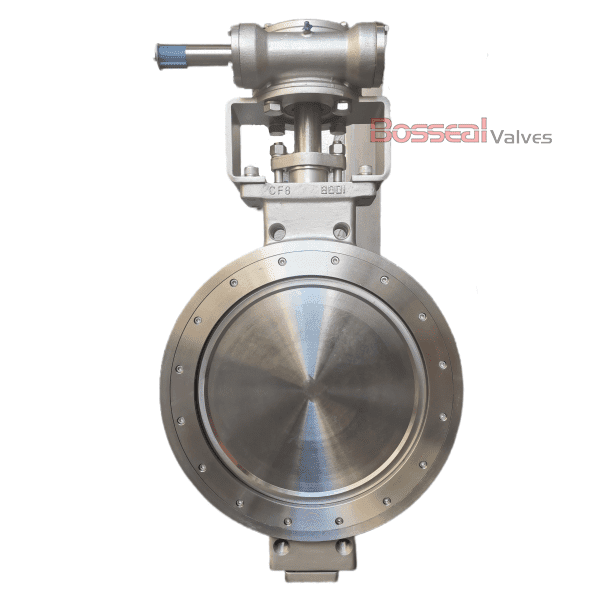

ASTM A351 CF8 Butterfly Valve, EN 593, API 609, CL150, 36 IN

Key Specifications / Features

Model no. : 1862218

As a specialist fabricator of double-offset butterfly valves, we produce high-performance valves designed to meet API 609 and EN 593 standards. Made from ASTM A351 CF8 material, these 36-inch valves are rated at 150 LB and feature a 17-4PH stem, RPTFE seat, and lug ends. They are built for long-term durability with frequent operations, boasting lower torque, replaceable seats, and tight sealing. With excellent control characteristics, bi-directional sealing under full pressure, and optional fire-safe seats, our valves ensure reliable performance in demanding applications.

Detail Information

API 609 High-Performance Butterfly Valve, Double Offset, RPTFE Seat, 36 Inch, 150 LB, Gear Operation.

Valve Description

1862218 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 36 Inch, DN900
Nominal Class: Class 150 LB, PN16
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Structure: Double Offset, Double Eccentric
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
