High-Performance

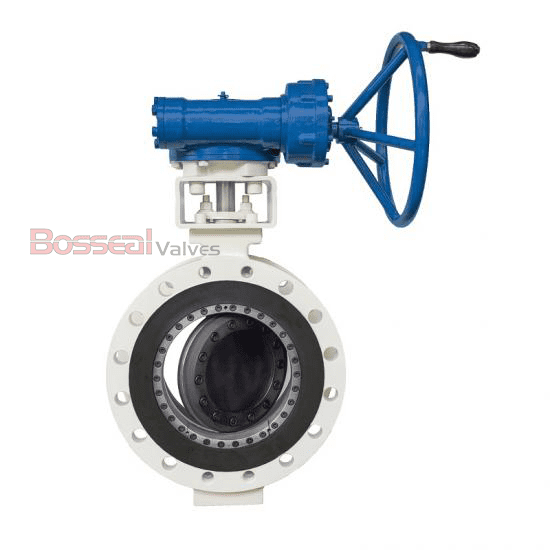

Butterfly Valve, 24 Inch, DN600, 150 LB, Soft Seat, Double Flanged End, Gear Operation.
Valve Description
1862129 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 24 Inch, DN600
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, Titanium.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
| Body Material: |
Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium |
| Normal Diameter: |
1/2 Inch - 48 Inch (DN15 - DN1200) |
| Pressure Range: |
Class 150 LB - 300 LB |
| Operation: |
Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
| Working Temperature: |
-26°C - +120°C (180°C for PPL seat) |
| End Connection: |
Wafer, Lug, Flanged |
| Seat Types: |
Available options include PTFE, RPTFE, PPL (for higher temperatures), and RPTFE+Metal (fire-safe). |
| Top Mounting: |
ISO 5211 top mounting is offered. |
| Operation Types: |
Choose from lever, gear, or pneumatic actuator options. |
| Bosseal Valve Advantages: |
Our valves feature zero leakage, low torque, long service life, low emissions, bi-directional sealing, and fire-safe capabilities. |
