ASTM A350 LF2 Trunnion Ball Valve, 16 Inch, 150 LB, API 6D, RF

Key Specifications / Features

Model no. : 16BS1RLF2

ASTM A350 LF2 Ball Valve Fabricator: 16 Inch, DN400, 150 LB, PN20, API 6D, Three Pieces Body, F316 Trim, DBB, RPTFE Seat, Gear Operation, RF Flanged End. Explore high-quality ball valves with ASTM A350 LF2 construction, featuring a 16-inch size, 150 LB pressure rating, PN20 standard, API 6D compliance, three-piece body design, F316 trim, Double Block and Bleed (DBB) capability, RPTFE seat, efficient gear operation, and RF flanged end for reliable performance.


Detail Information

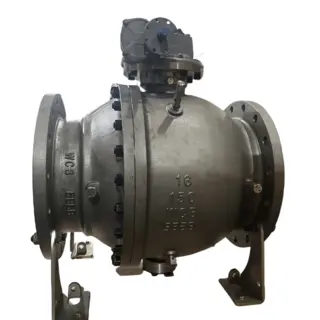

Trunnion Mounted Ball Valve, API 6D, 16 inch, 150 LB, RF, LF2 Body, F316 Trim, RPTFE Seat, Gear Operation

Valve Description:
1811050 Trunnion Mounted Ball Valve 16BS1RLF2
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DBB, drain valve
Nominal size: 16 Inch, DN400
Nominal class: 150 LB, PN20
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DBB, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
