Key Specifications / Features

Model no. : 6BS3RLF2-DIB1

Get superior quality DIB-1 Trunnion Mounted Ball Valve with API 6D standard, featuring double piston seats and 6 inch size at 300 LB pressure with RF and LF2 options. Shop now for reliable and durable ball valves.


Detail Information

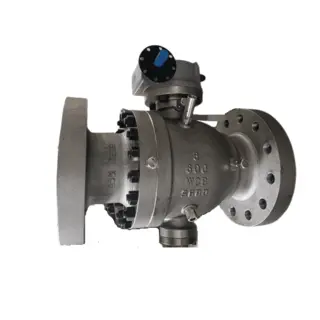

DIB-1 Trunnion Mounted Ball Valve, API 6D, Double Piston Seats, 6 Inch, 300 LB, RF, LF2

Valve Description:
1811008 Trunnion Mounted Ball Valve 6BS3RLF2-DIB1
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DPE Seats
Nominal size: 6 Inch
Nominal class: 300 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A350 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double-Isolation and Bleed (DIB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Cavity-pressure relief valve included

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator

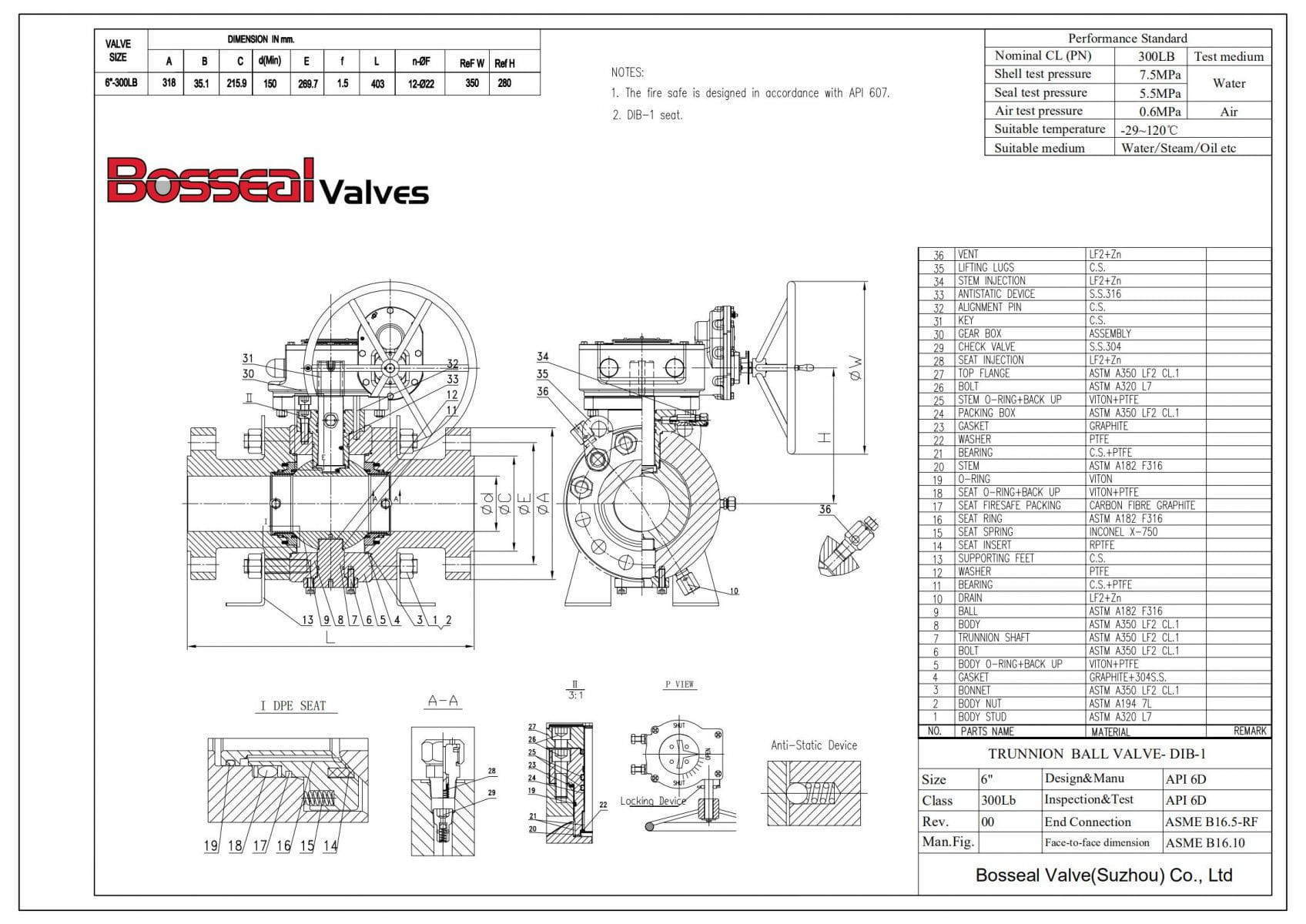

DIB-1  Trunnion Ball Valve Tech Drawing
