Key Specifications / Features

Model no. : 1811137

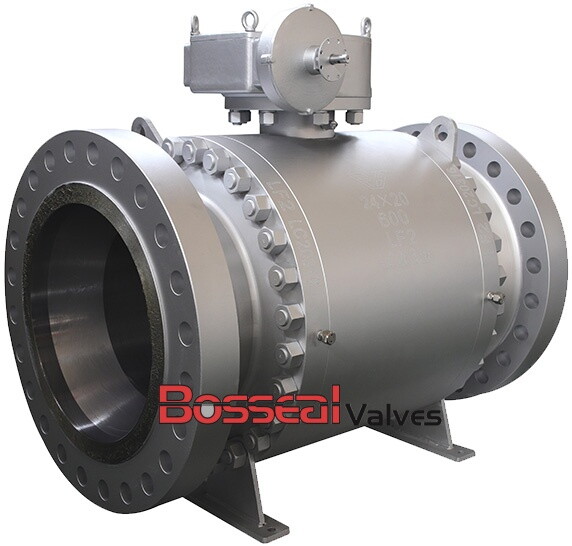

Discover our top-quality ASTM A350 LF2 Ball Valve, meticulously crafted with precision to meet industry standards. This valve boasts a robust 4-inch build, designed to handle up to 900 LB pressure. Engineered for efficiency, it's equipped with DN100 and PN150 ratings, adhering to API 6D and BS 5351 guidelines. Constructed with ASTM A105N materials, its trunnion-mounted design ensures reliable performance. Featuring a 3pcs body configuration and a DEVLON seat, this valve guarantees durability and longevity. With RTJ flanged connections and gear operation, it delivers seamless functionality for your industrial needs.


Detail Information

API 6D Trunnion Mounted Ball Valve, 3pcs body, Forged, Side Entry, Bolted Bonnet, 4 INCH, 900 LB, RTJ, DEVLON seat, Gear Operation

Valve Description:
1811137 Trunnion Mounted Ball Valve
Design Standard: API 6D, BS 5351
Structure: 3pcs body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 4 Inch
Nominal class: 900 LB
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N or A350 LF2
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55, ASTM A105+ENP, ASTM A350 LF2+ENP
Seat Insert: RPTFE, DEVLON, NYLON, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection, Low Emission (Optional), DIB (Optional)

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
