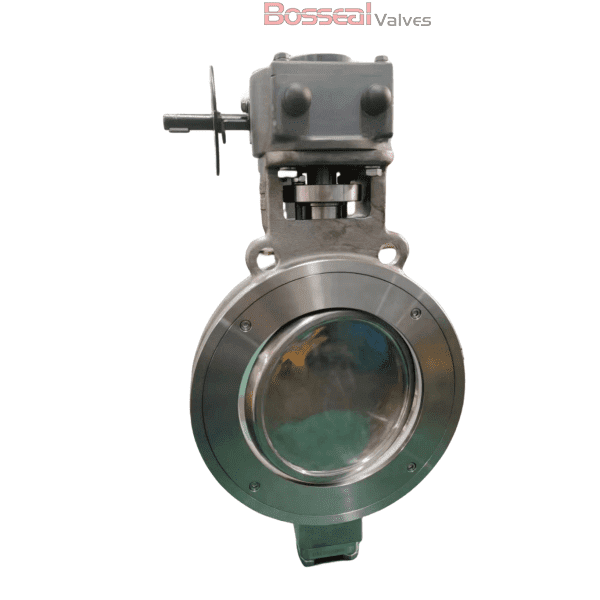

ASTM A216 WCB Wafer Butterfly Valve, 300 LBS, 12 Inches

Key Specifications / Features

Model no. : 1862187

As a leading carbon steel butterfly valve factory in China, we manufacture 12-inch double offset valves made from ASTM A216 WCB material, conforming to EN 593 and API 609 standards. These valves feature a double eccentric design and are rated for 300 LBS, with a 17-4PH stainless steel stem for added strength and corrosion resistance. Bosseal valves offer key advantages, including zero leakage, low torque operation, long working life, low emissions, bi-directional flow capability, and fire-safe performance, ensuring reliable service in demanding industrial environments.

Detail Information

EN 593 Double Eccentric Butterfly Valve, 12 Inch/DN300, 300 LB, Double Offset.

Valve Description

1862187 High-Performance Butterfly Valve
Structure: Double Offset, Double Eccentric
Design Standard: EN 593, API 609 Category B
Nominal Size: 12 Inch, DN300
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium.
Seat: RPTFE, PPL
End Connection: Wafer
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe
