ASTM A216 WCB Swing Check Valve, 20 Inch, 600 LB, BS 1868

Key Specifications / Features

Model no. : 20S6RWCB01

Looking for a reliable Cast Steel Swing Check Valve Manufacturer? Look no further than our top-quality valves made from ASTM A216 WCB steel. Our valves come in a range of sizes including 20 inches and are rated to handle up to 600 LB, DN500, and PN100 pressure. With industry-standard features like BS 1868 and API 594 compliance, bolted bonnets, swing type, trim 1, and flanged RF, our valves are built to last. Trust us for all your check valve needs.

Detail Information

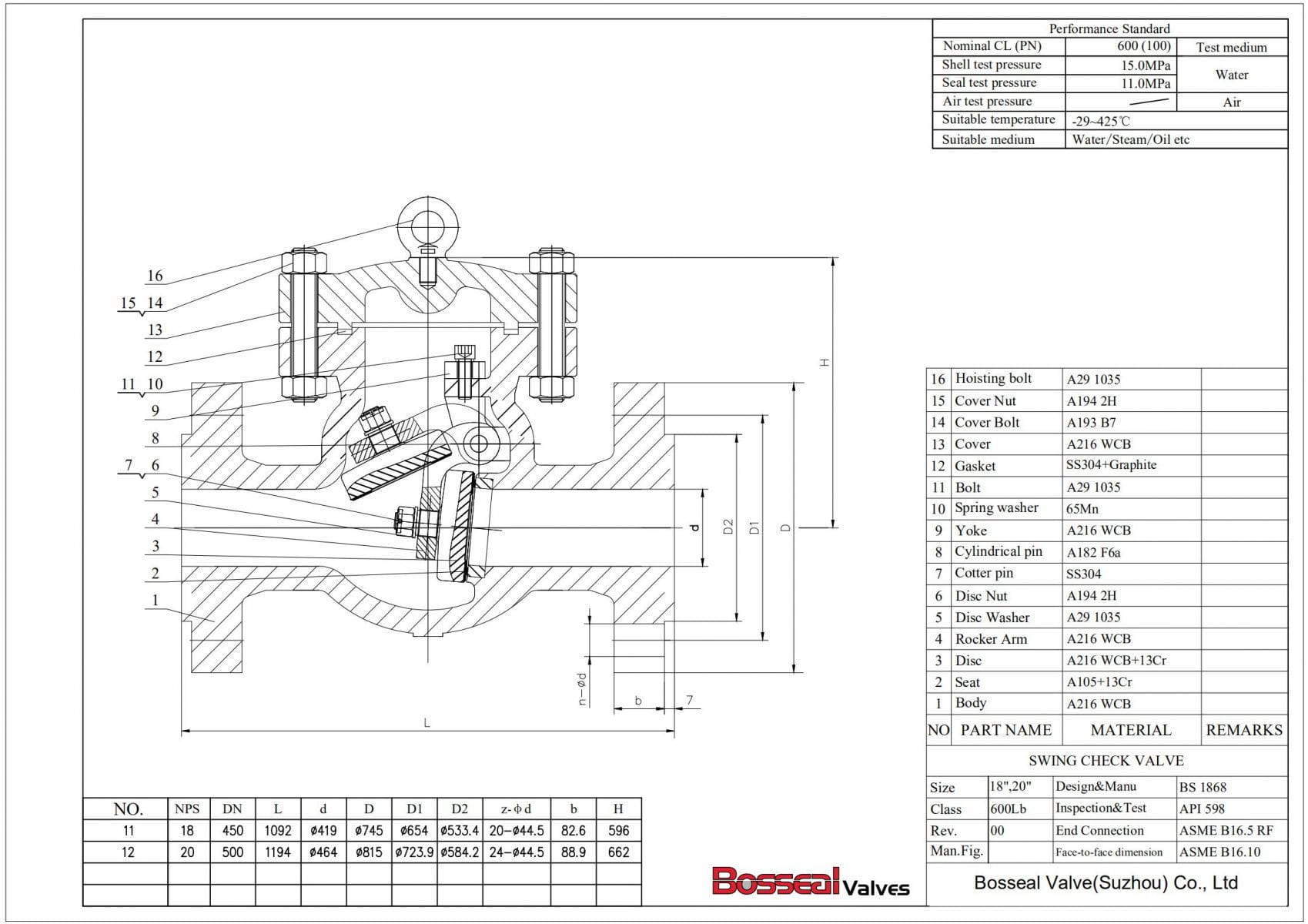

Cast Steel Swing Check Valve, 20-inch 600 LB, Flanged RF, BS 1868, WCB Body, Trim 1

Valve Description:
1841002 Swing Check Valve 20S6RWCB01
Design Standard: BS 1868, API 594
Structure: Bolted Bonnet, Swing type
Nominal size: 20 Inch
Nominal class: 600 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: /
Body Material: ASTM A216 WCB
Trim Material: 1Cr13, No.1
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Swing Disc, Renewable Seat

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 32 Inch (DN50 - DN800)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +425℃
Operation: /
