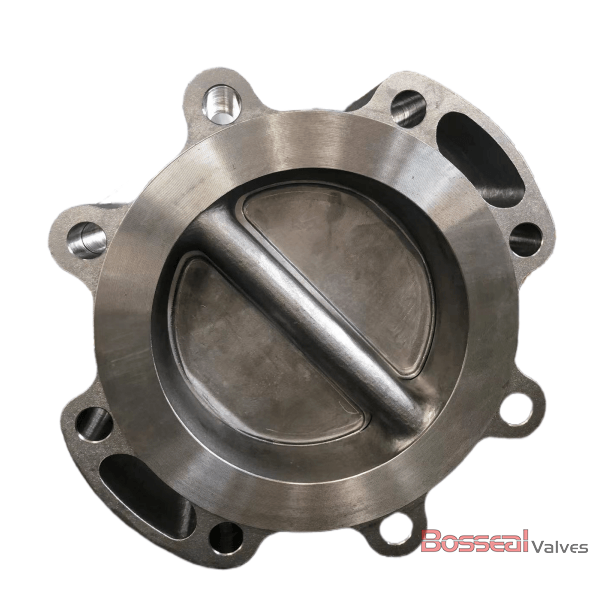

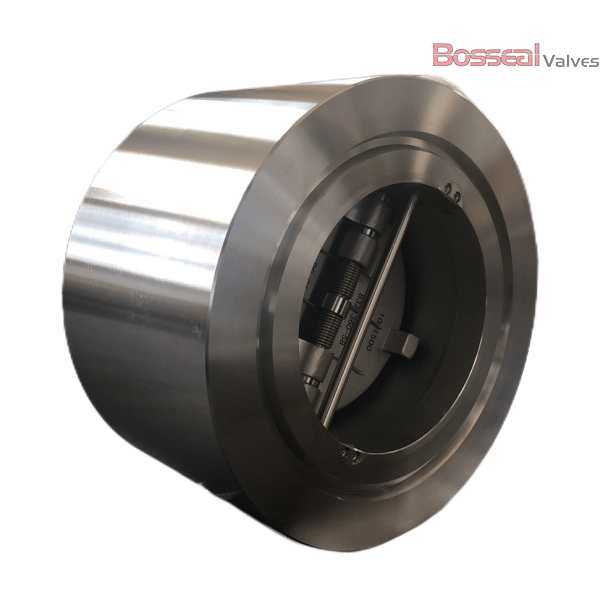

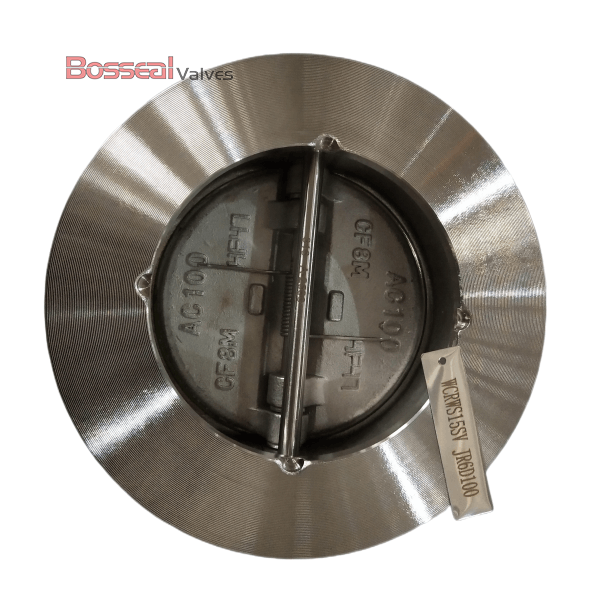

ASTM A216 WCB Non-Return Valve, API 594, 6 Inch, 1500 LB

Key Specifications / Features

Model no. : CV-20240816-03

As a leading non-return valve factory in China, we specialize in manufacturing 6-inch dual plate non-return valves that meet API 594 and API 6D standards. Constructed from high-quality ASTM A216 WCB material, these valves are designed for durability and optimal performance. With a DN150 size and a rating of Class 1500 LB (PN250), our valves feature a spring-loaded mechanism and wafer ends for secure and efficient installation. Engineered for reliability in demanding environments, our non-return valves are the ideal choice for industrial applications.

Detail Information

ASTM A216 WCB Non-Return Valve, Dual Plate, API 594, 6 Inch/DN150, Class 1500 LB, PN250, Wafer Ends.


Valve Description

1842106 Dual Plate Check Valve
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 6 Inch, DN150
Nominal Class: 1500 LB, PN250
Body Material: ASTM A216 WCB, Titanium Alloy, ASTM B148 C95800, ASTM A890 4A, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 5A
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, CF8M, ASTM A890 4A, 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Optional Soft and Metal Seat, Compact Design, Independent Spring, Unique Slim Plate Design.
Applications: Water and Wastewater Treatment, Oil and Gas Industry, Chemical Processing, Power Generation, HVAC Systems, Marine Industry, Fire Protection Systems, Food and Beverage Industry.


Product Portfolio

Operation: Not Applicable (Manual or actuated available for special request)
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 2500 LB
End Connection: Wafer, Lug, Flanged-RF, RTJ
Working Temperature: -196°C to +450°C
