Flexible Wedge

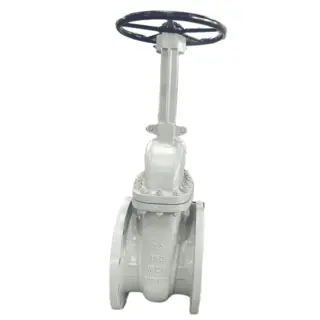

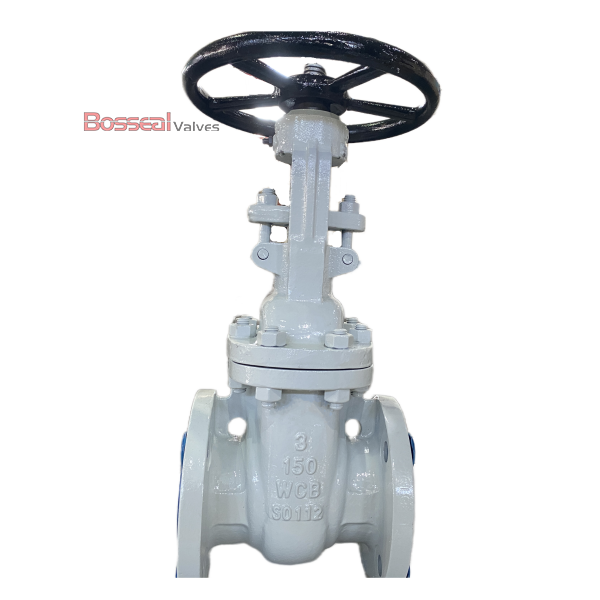

Gate Valve, ASTM A216 WCB Body, 14 IN/DN350, 2500 LB, OS&Y, Bolted Bonnet, RTJ Flanged.
Gate valves are multi-turn valves designed for isolation, allowing for complete opening or closing of the pipeline. They operate via a threaded stem that moves the gate to seal against two seats, blocking fluid flow. Typically featuring metal seats with hard facing (like stellite CoCrW or SS overlay) for durability, they can also be equipped with soft seats for applications such as water. Gate valves require less installation space than other shut-off valves and their gradual operation helps mitigate water hammer. They are versatile and suitable for various fluids including water, oil, steam, gas, and slurry.
Valve Description
1821156 Gate Valve
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Bore Type: Standard Bore(API 600)
Body Material: ASTM A216 WCB, ASTM A890 5A, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800.
Nominal Size: 14 Inch, DN350
Nominal Class: 2500 LB, PN420
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55.
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: RTJ Flanged
Operation: Handwheel/Gear
Key Features
1. OS&Y (Outside Screw and Yoke) design for reliable operation.
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
