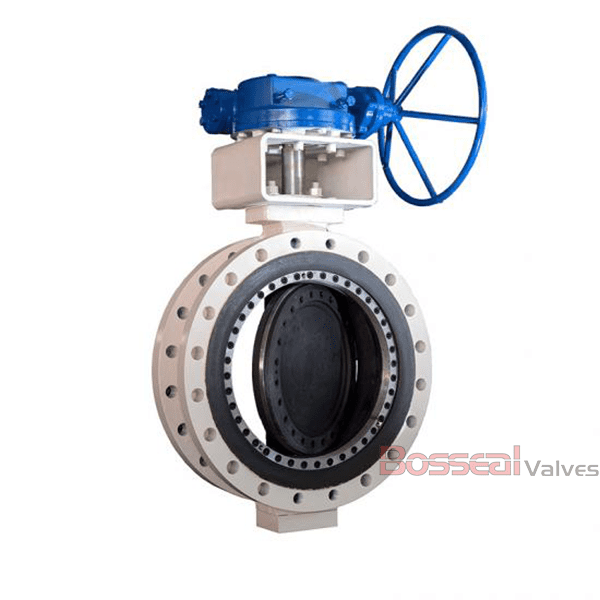

ASTM A216 WCB Flanged Butterfly Valve, CL150, 2-1/2 Inch

Key Specifications / Features

Model no. : 1862370

As a carbon steel butterfly valve factory, we produce double eccentric, double offset butterfly valves designed to meet API 609 Category B standards. Made from ASTM A216 WCB material, these 2-1/2 inch valves are rated for Class 150 LB and feature a Monel K500 stem for superior corrosion resistance. The double offset design is ideal for pipelines requiring frequent open/close operations, offering reliable performance in isolation and regulating applications. These valves are widely used across various industries due to their durability, precise control, and long service life.

Detail Information

API 609 Double Offset Butterfly Valve, 2-1/2 Inch/DN65, 150 LB, Lever Operation.

Valve Description

1862370 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 150 LB, PN16
Body Material: ASTM A216 WCB, ASTM A351 CF8M, ASTM B148 C95800, ASTM A351 CF8, ASTM A890 5A, ASTM A890 4A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Lever
Seat: RPTFE, PPL
Structure: Double Offset, Double Eccentric
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2  - 48 Inches (DN15 - DN1200)
Pressure Range: CL 150, 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
