ASTM A216 WCB Dual Plate Check Valve, API 594, 20 IN, 150 LB

Name: ASTM A216 WCB Dual Plate Check Valve, API 594, 20 IN, 150 LB
SKU: 20sbs1wwcb
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model no. : 20SBS1WWCB

This 20-inch dual plate check valve features a Viton seat, API 594 standards, 150 LB rating, WCB body, and CF8M disc. It is a highly durable and reliable valve designed to maintain excellent flow control within various applications.

Request a quote

Tags:

20 Inch Check Valve

DN500 Check Valve

Class 150 LB Check Valve

Detail Information

20 Inch Viton Seat Dual Plate Check Valve, API 594, 150 LB, WCB Body, CF8M Disc

Valve Description:
1842005 Dual Plate Check Valve 20SBS1WWCB
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: 20 Inch
Nominal class: 150 LB
End Connection: Wafer-RF
Operation: /
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, X-750 Spring, Viton seat
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, HIgh flow efficiency, Low noise, Short face-to-face length

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -46℃ - +200℃
Operation: /

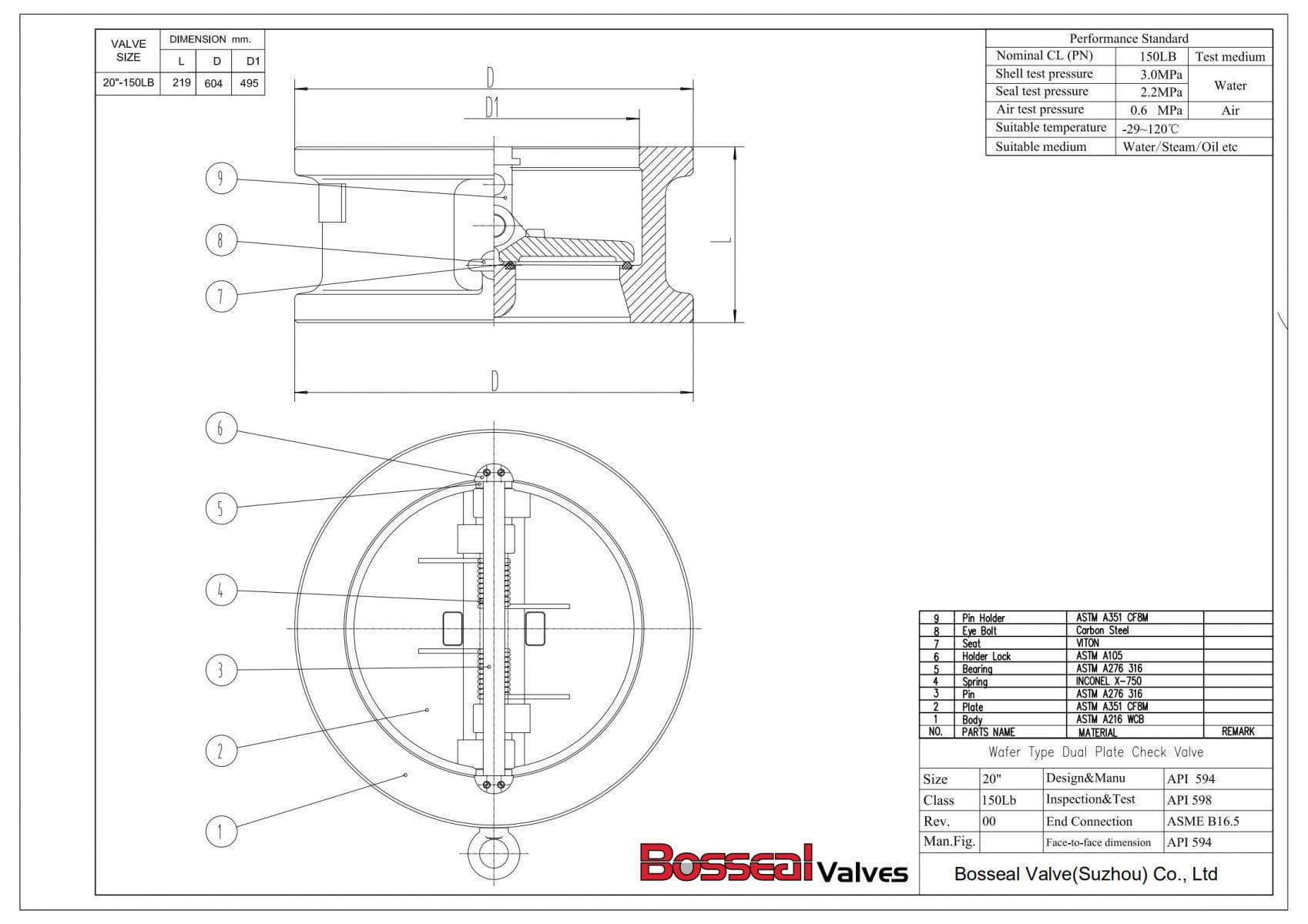

Viton Seat Dual Plate Check Valve Tech Drawing

Next: ASTM A995 6A Dual Plate Check Valve, 8 Inch, 1500 LB, RTJ

Previous: ASTM A351 CF8M Dual Plate Check Valve, API 594, 6 IN, 150 LB

Similar Products

ASTM A216 WCB Swing Check Valve, 20 Inch, 600 LB, BS 1868

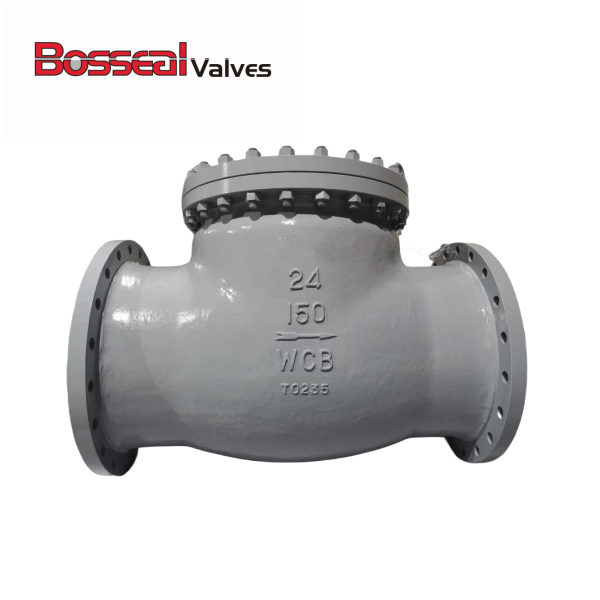

API 594 Swing Check Valve, 24 Inch, 150 LB, ASTM A216 WCB, RF
