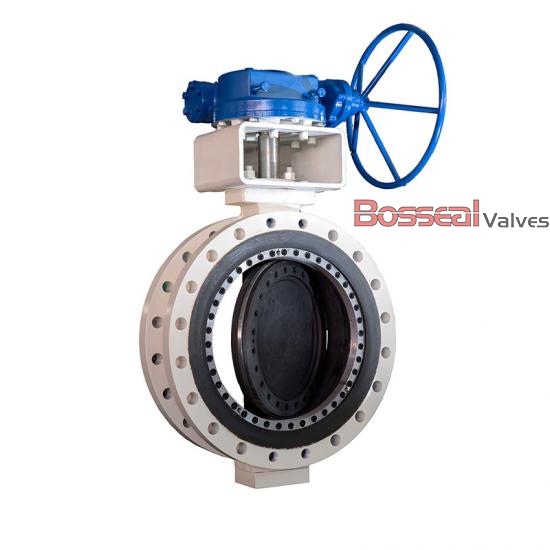

EN 593 High-Performance
Butterfly Valve, API 609, 28 Inch/DN700, 300 LB, Double Eccentric.
Valve Description
1862194 High-Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium.
Nominal Size: 28 Inch, DN700
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
End Connection: Wafer
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Operation: Gear
Seat: RPTFE, PPL
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Different End Connections Available

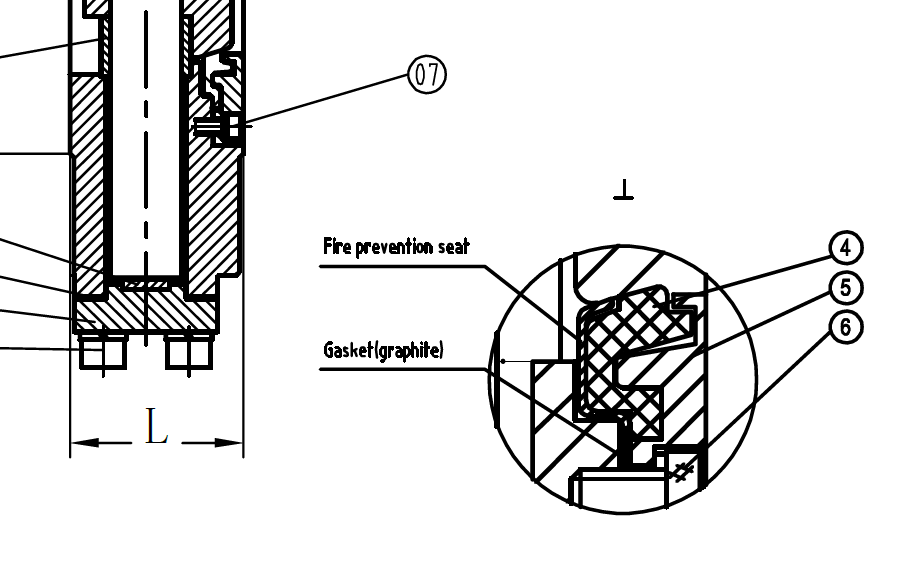

Fire Safe Seat Design
Fire safe with dual seal including primary soft PTFE seat and secondary metal seat, in event of fire the soft seat is destroyed the metal seat will provide effective shut-off.
