High-Performance
Butterfly Valve, 20 Inch/DN500, 300 LB, Soft Seat, Double Flanged End.
Valve Description

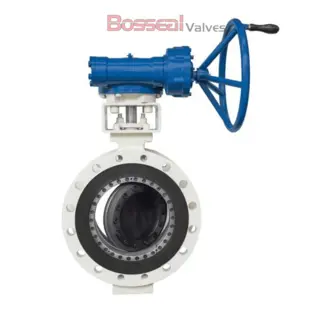

1862149 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 20 Inch, DN500
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, Titanium.
Seat: RPTFE, PPL
Structure: Double Offset, Double Eccentric
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Introduction of Double Eccentric Butterfly Valve
This valve offers significant cost and space savings compared to other valve types, with a broader size range, faster operation, and reduced restriction and wear between the disc and seat sealing surfaces. These features contribute to a longer service life and lower total cost of ownership. With its two-offset design, the valve provides extended durability and lower torque, making it ideal for frequent operation. Bosseal's high-performance butterfly valve has successfully passed a million-cycle test.
